MULTISTRAND SINGLE CORE COPPER WIRE

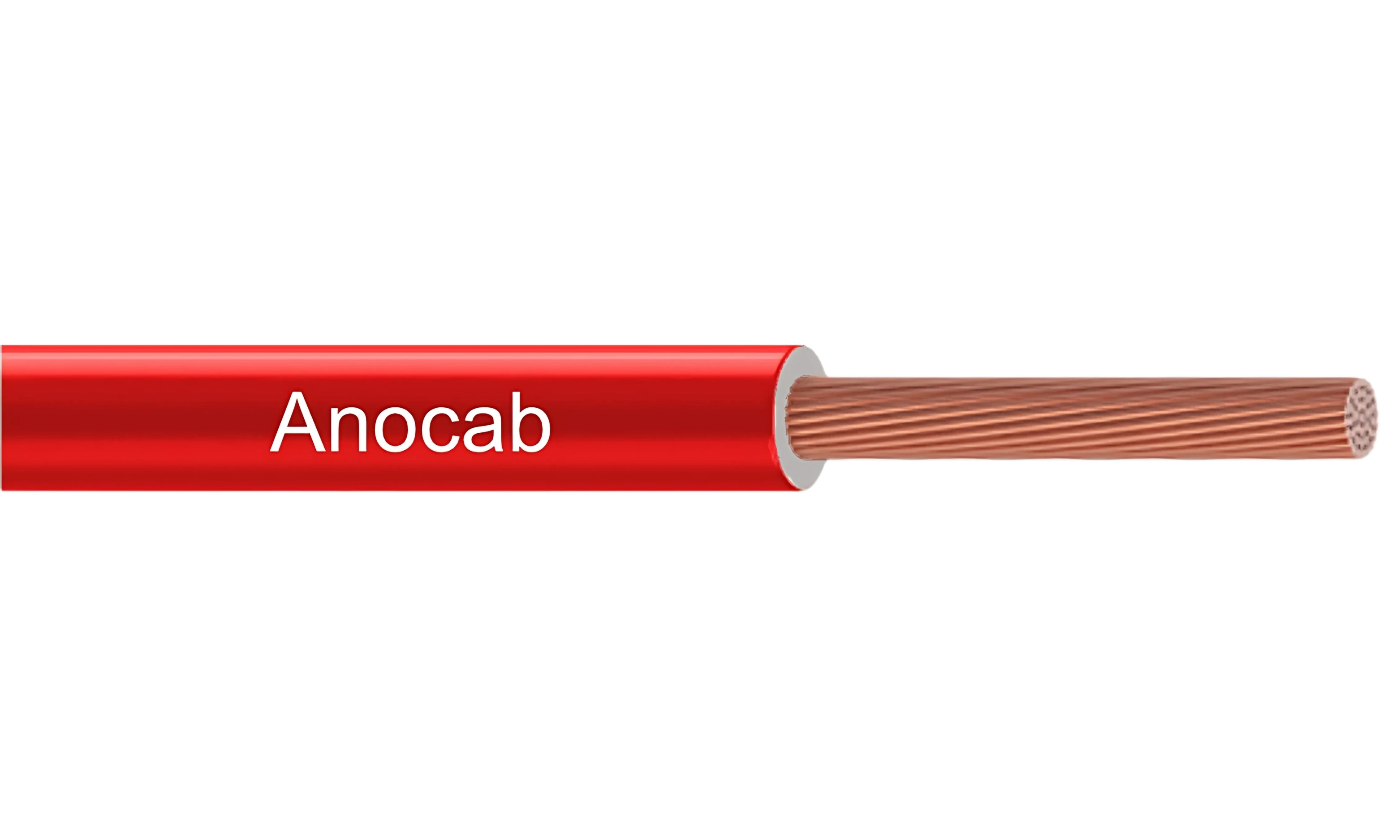

Multistrand Single Core Copper Wire Side View

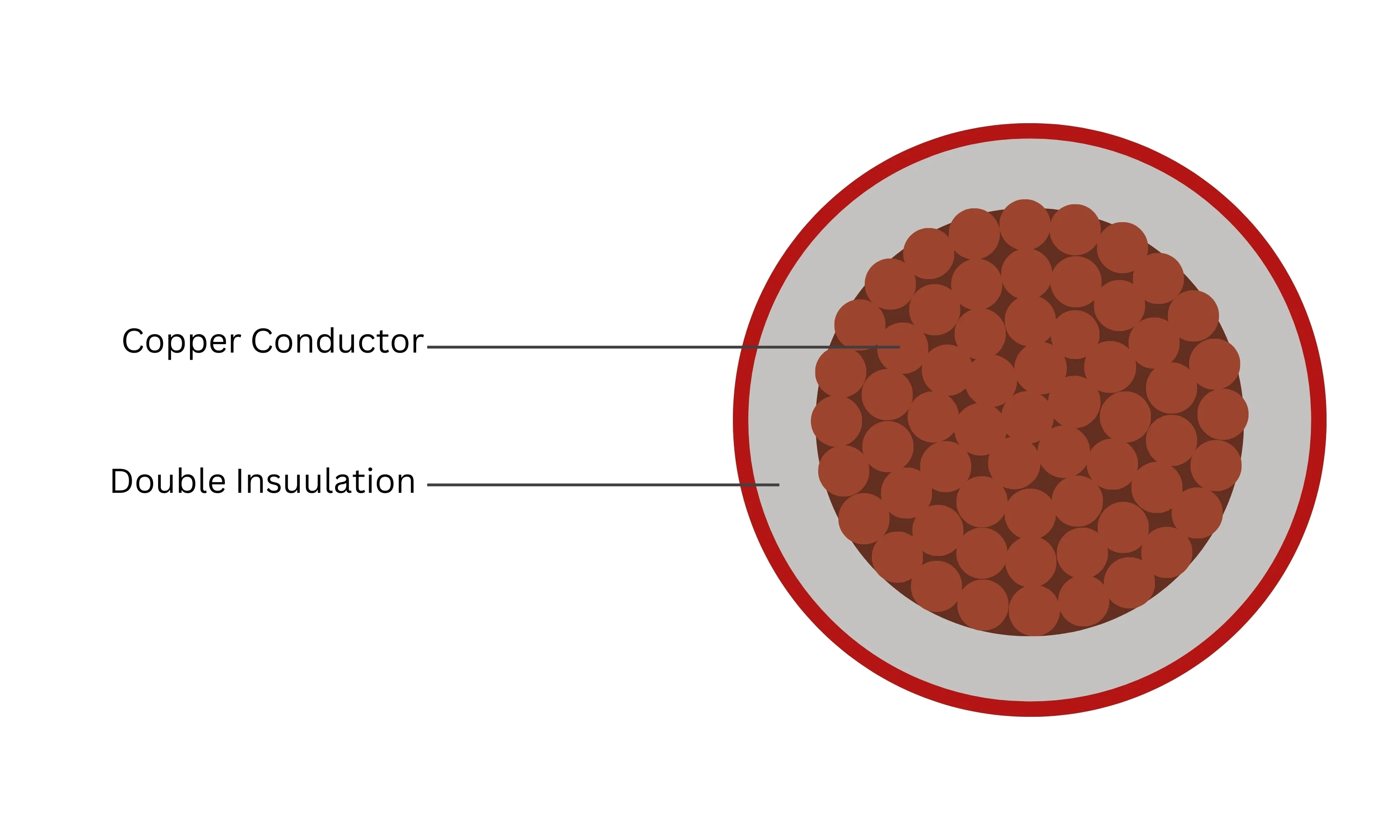

Multistrand Single Core Copper Wire Front View
IS no. Anti-rodent,Anti termite high temp. Aluminium CE marked ISO 14001

TECHNICAL DATA

Reference: IS 694:2010
Voltage Grade: Up to and including 1100V
Conductor: Electrolytic Grade Copper class – 2, 5, as per IS: 8130:2013
Insulation: PVC confirming to IS-5831 and Formulated With FR Properties and Heat resistance up to 85 °C. FRLSH & ZHFR insulation Type A/C 70/85°C
Colours: Red, yellow, blue, black & other Colour on customer demand
Marking: The cables are printed with marking of 'ANOCAB'
Packing: 90 mtr. coil is packed in protective Plastic bag & Longer length on Customer demand

APPLICATIONS

Residential Wiring: Ideal for electrical wiring in homes for lighting, switches, and power outlets due to its flexibility and ease of installation.
Commercial & Industrial Wiring: Commonly used in industrial plants, factories, and commercial buildings where high mechanical strength and flexibility are required.
Panel Wiring: Frequently utilized in control panels, distribution boards, and switchboards, ensuring optimal electrical conductivity.
Automobile Wiring: Suitable for automotive electrical systems, offering excellent durability in vehicle applications.
Appliances: Used in wiring electrical appliances, suchs such as refrigerators, air conditioners, and washing machines.
Telecommunications: Supports a range of telecommunication and signal transmission applications.

BENEFITS

High Flexibility: Multi-stranding provides better flexibility than solid core cables, making it easier to install and bend around corners.
Superior Conductivity: Copper is known for its excellent electrical conductivity, ensuring minimal power loss.
Durability: These cables offer high mechanical strength, are resistant to corrosion, and can withstand harsh environmental conditions.
Cost-Efficient: Despite their high performance, these cables are cost-effective for both residential and commercial applications.
Safety: The cables provide enhanced safety with their reliable insulation materials that reduce the risk of electrical hazards such as short circuits or fires.

SIZE CHART

Size No. of Wires &
Dia. of Each Wire		 Current Carrying Capacity
(2 Cables Single Phase)		 CR @ 20°C
Ω/km
In MM In INCH Bunched and Enclosed in
Conduit or Trunking		 Clipped Direct to a Surface or
on a Cable Tray, Bunched & Unenclosed
0.5 Mm² 16/0.20 16/0.00788 4 Amp. 4 Amp. 39.00
0.75 Mm² 24/0.20 24/0.00788 7 Amp. 7 Amp. 26.00
1 Mm² 32/0.20 32/0.00788 11 Amp. 12 Amp. 18.10
1.5 Mm² 30/0.25 30/0.00985 13 Amp. 16 Amp. 12.10
2.5 Mm² 50/0.25 50/0.00985 18 Amp. 22 Amp. 7.41
4 Mm² 56/0.30 56/0.01181 24 Amp. 29 Amp. 4.95
6 Mm² 84/0.30 84/0.01181 31 Amp. 37 Amp. 3.30
