PVC INSULATED MULTICORE ALUMINIUM CABLE

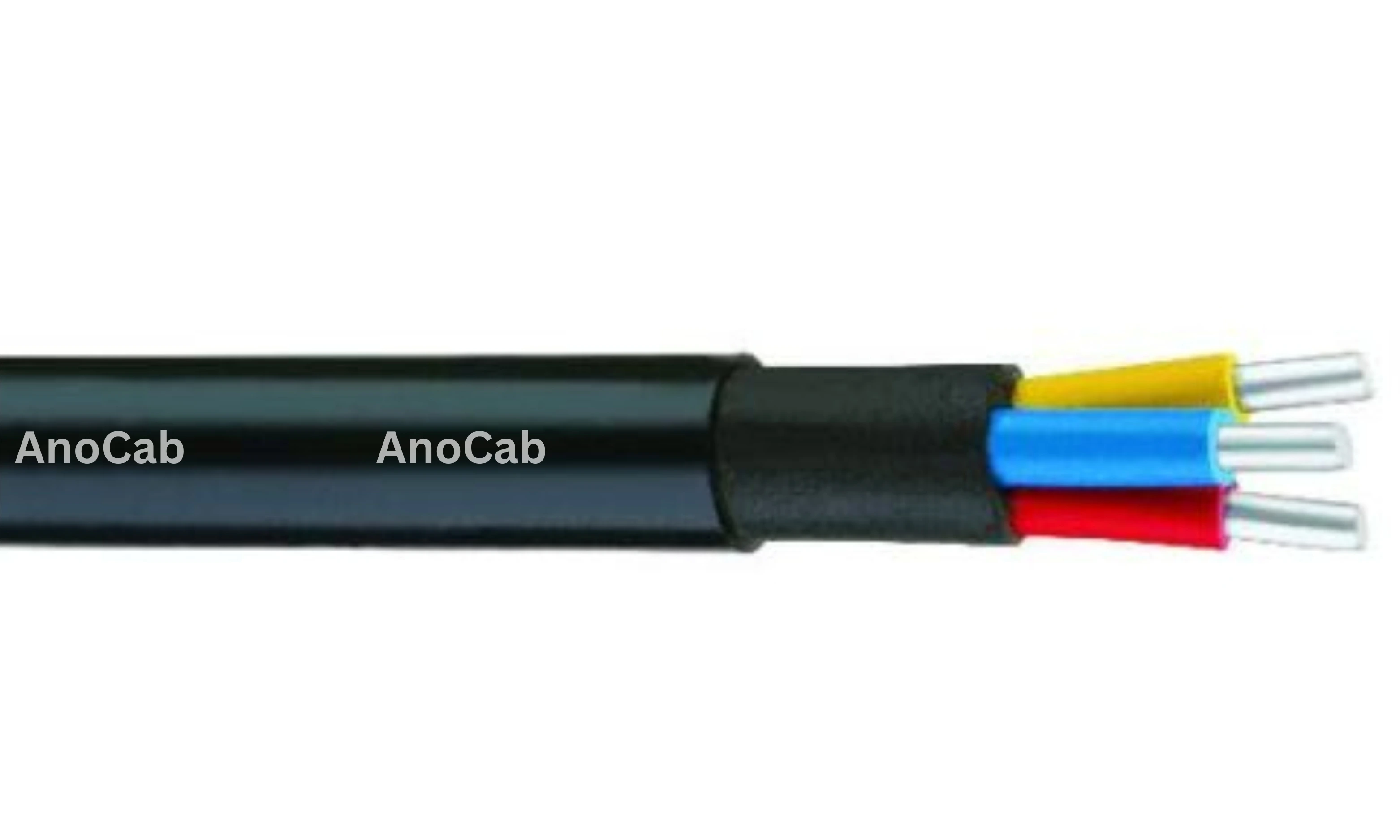

PVC insulated multicore aluminium cable side view

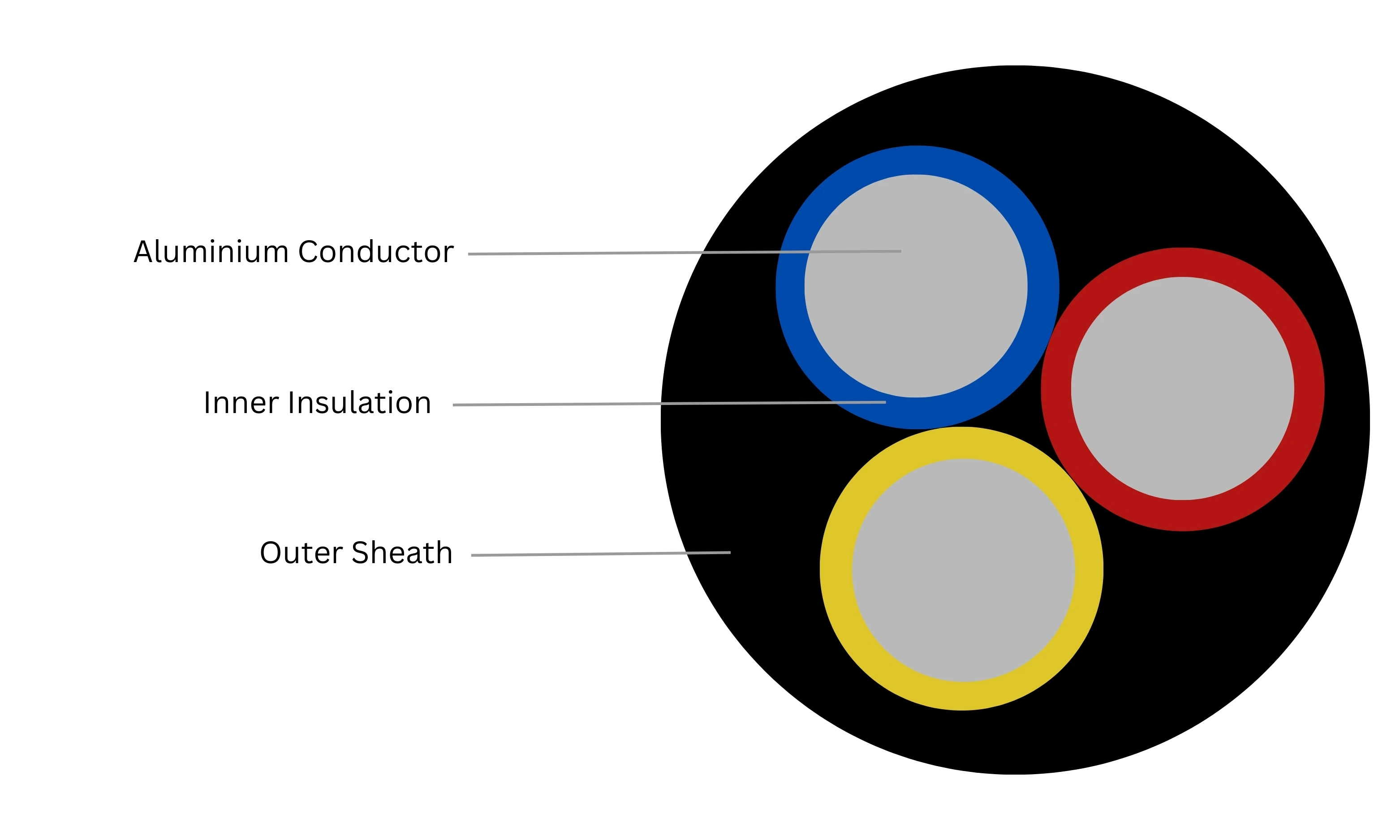

PVC insulated multicore aluminium cable front view
IS no. Anti-rodent,Anti termite high temp. Aluminium CE marked ISO 14001

TECHNICAL DATA

Reference: IS 694:2010
Voltage Grade: Up to and including 450/750V
Conductor: EC grade Annealed Aluminum class-1 & 2 as per IS 8130
Insulation: PVC Type – A, as per 5831
Colour of Core: Red & Black for 2 core cable, red, yellow, blue for 3 core cable, & red, yellow, blue & black for 4 core cable
Sheath: PVC Type ST-I, PVC Type -ST 2 as per IS 5831
Colour of Sheath: Black and Other Colour as per Customer demand
Marking & Packing: Standard packing of 500 mtr. in coil. & Other length available on request, cables are printed with marking of ‘ANOCAB’

APPLICATIONS

Power Distribution: Widely used for low-voltage power distribution in commercial and industrial settings, these cables ensure efficient energy transmission across multiple circuits.
Control Panels: Ideal for control wiring in panels, switchgear, and automation systems, providing reliable signal transmission and power supply to various components.
Building Wiring: Used in both residential and commercial buildings for wiring multiple electrical circuits, providing power to lights, outlets, and electrical equipment.
Renewable Energy: Often deployed in solar and wind energy systems, where multicore cables are essential for managing multiple electrical connections.
Automotive Applications: Suitable for automotive wiring systems where multicore cables are needed to manage various electrical circuits within the vehicle.
Instrumentation: Used in complex industrial instrumentation and control systems, facilitating the efficient transmission of signals and power between equipment.

BENEFITS

Lightweight: Aluminum is significantly lighter than copper, making these cables easier to handle and install, especially in large systems.
Cost-Effective: Multicore aluminum cables are an economical solution compared to copper cables, offering substantial savings without compromising performance.
Durable: The PVC insulation provides excellent protection against moisture, chemicals, and corrosion, ensuring long-term durability in various environmental conditions.
Space Saving: The multicore design combines multiple electrical circuits into a single cable, reducing installation space and simplifying complex wiring systems.
Heat Resistant: PVC insulation offers heat and flame-resistant properties, providing safety in environments where electrical cables may be exposed to high temperatures or fire risks.
Energy Efficient: While lighter than copper, aluminum maintains good electrical conductivity, ensuring efficient power transmission and reducing energy loss.

SIZE CHART

Size No of Wires & Dia. of Each Wire Current Carrying Capacity CR @ 20°C
Ω/km
In MM In INCH 2 Core Cable (Amp.) 3/4 Core Cable (Amp.) 2 Core Cable (Amp.) 3/4 Core Cable (Amp.)
2.5 Mm² 1.78 0.070 16 14 19 17 12.10
4 Mm² 2.25 0.088 21 19 26 23 7.41
6 Mm² 2.76 0.108 27 24 32 28 4.61
10 Mm² 3.56 0.140 37 32 42 37 4.05
16 Mm² 4.51 0.177 50 44 58 52 1.91
