MULTICORE XLPE INSULATED ALUMINIUM ARMOURED CABLE

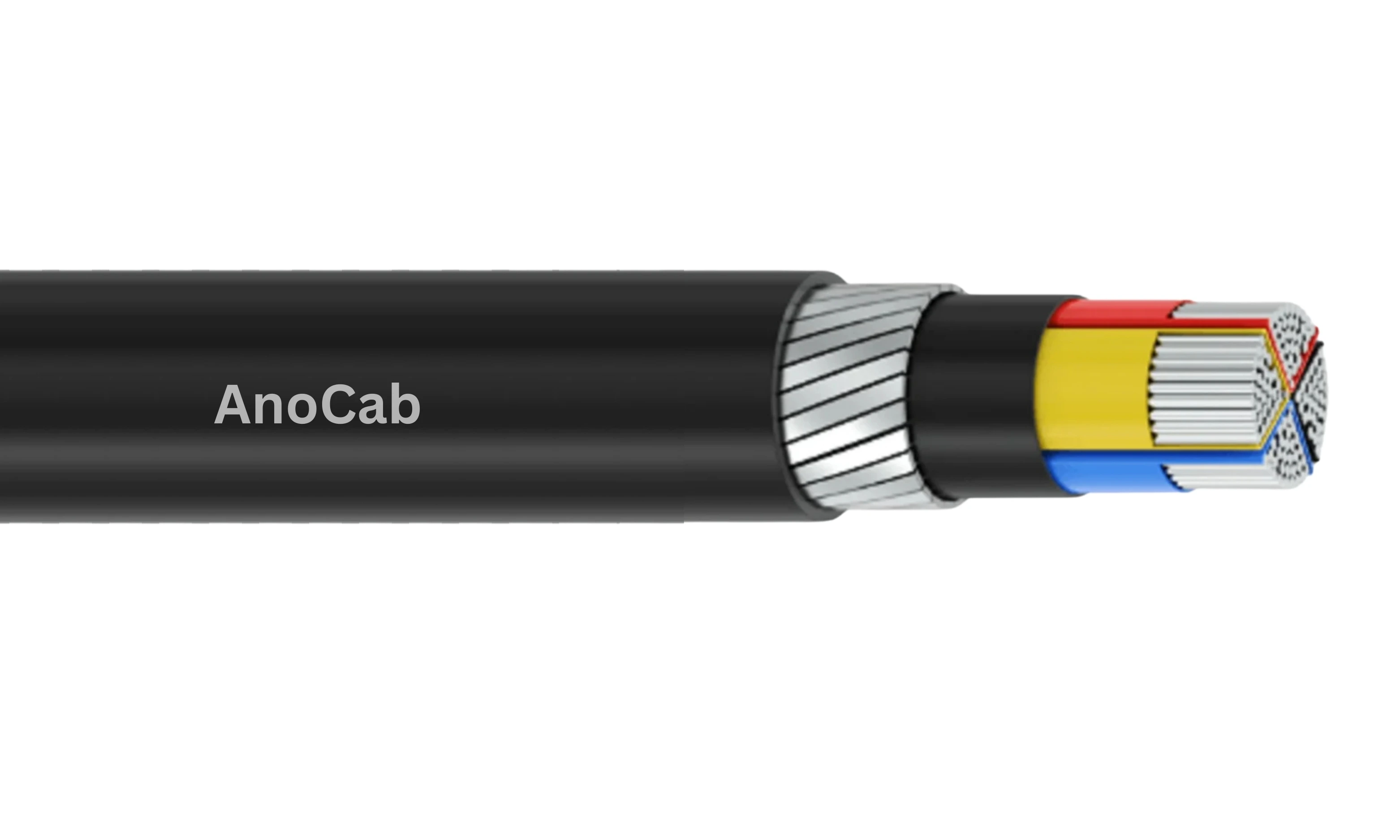

Multi core XLPE insulated aluminium armoured cable side view

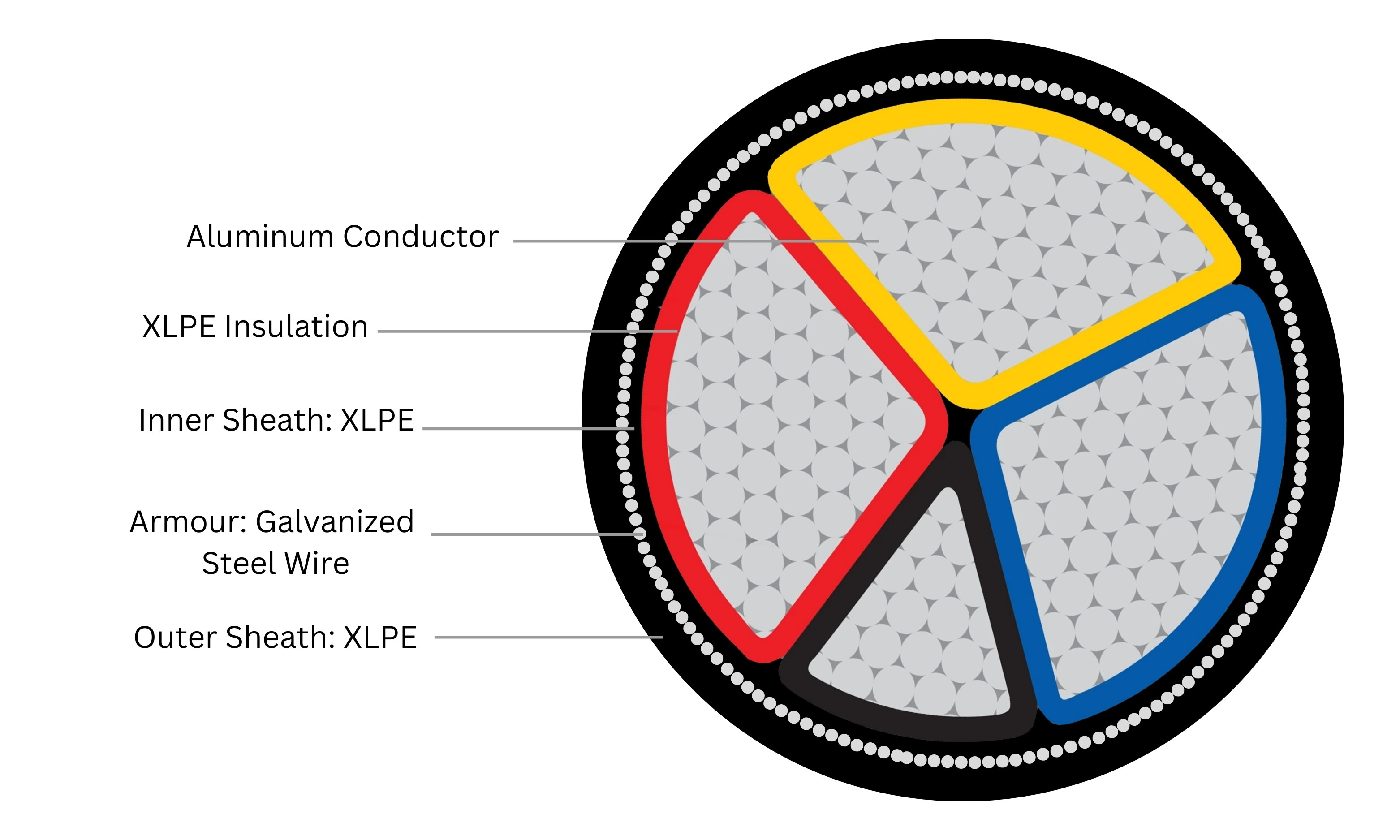

Multi core XLPE insulated aluminium armoured cable front view
IS no. Anti-rodent,Anti termite high temp. Aluminium CE marked ISO 14001

TECHNICAL DATA

Reference: IS 7098 PT-I
Voltage Grade: Up to and including 1100 volt
Conductor: EC grade Annealed Aluminum class 1 & 2 as per IS 8130
Insulation: XLPE insulated. Colour of Core: Red & black for 2 core cable, red, yellow, blue for 3 core cable, red, yellow, blue & black for 4 core cable
Sheath: PVC Type ST-I, PVC Type -ST 2 as per IS 5831. Colour of Sheath: Black and Other Colour as per Customer demand
Marking & Packing: Standard packing of 500 mtr. in coil. & Other length available on request, cables are printed with marking of ‘ANOCAB’

APPLICATIONS

Power Distribution: Multi-core XLPE insulated aluminum armored cables are primarily used in power distribution systems, facilitating the efficient transmission of electricity in residential, commercial, and industrial environments.
Heavy Machinery: These cables are ideal for connecting heavy machinery and equipment in industrial settings, providing a reliable power supply necessary for optimal performance.
Substations: In substations, these armored cables ensure secure and efficient connections between transformers, circuit breakers, and other critical electrical equipment.
Renewable Energy Applications: They are widely used in renewable energy projects, such as solar and wind farms, where robust and reliable power transmission is crucial for system efficiency.
Construction Sites: Multi-core armored cables are essential for construction projects, supplying temporary power to tools, lighting, and equipment, ensuring safe and efficient operations.
Underground Installations: Due to their armored construction, these cables are suitable for underground installations, protecting the conductors from mechanical damage and environmental factors.

BENEFITS

Enhanced Durability: The armored design provides excellent protection against physical damage, ensuring long-lasting performance in challenging environments.
High Thermal Resistance: XLPE insulation offers superior thermal properties, allowing the cables to operate at higher temperatures without compromising safety or performance.
Lightweight and Flexible: Aluminum conductors are lighter than copper, making these cables easier to handle and install while maintaining flexibility for routing in tight spaces.
Cost-Effective Solution: Multi-core XLPE insulated aluminum armored cables are a cost-effective alternative to copper cables, offering good electrical conductivity at a lower price, making them suitable for large-scale projects.
Low Energy Losses: These cables are designed to minimize energy losses during transmission, ensuring efficient power delivery and reducing operational costs.
Moisture and Chemical Resistance: The cables are resistant to moisture and various chemicals, making them suitable for use in diverse environments without the risk of degradation.
Reduced Maintenance Needs: Their robust construction and resistance to environmental factors result in minimal maintenance requirements, further lowering operational costs over time.

SIZE CHART

SIZE No of Wires &
Dia. of Each Wire		 Current Carrying Capacity CR @ 20°C
Ω/km
in MM in INCH Laid Direct in
the Ground		 In Air
    2 CORE
CABLE
(AMP.)		 3/4 CORE
CABLE
(AMP.)		 2 CORE
CABLE
(AMP.)		 3/4 CORE
CABLE
(AMP.)
