PAPER COVERED ALUMINIUM CONDUCTOR

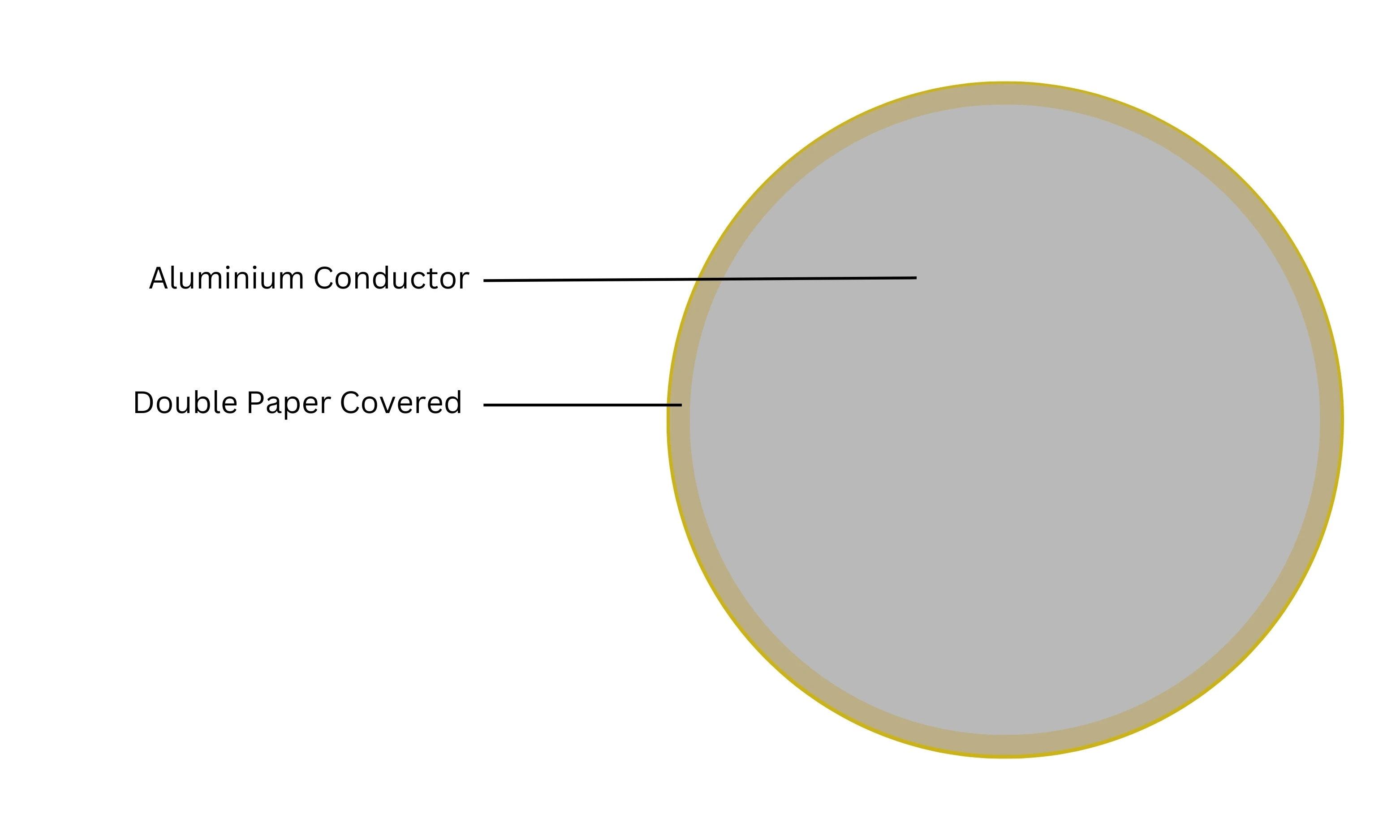

Paper covered aluminium conductor side view
Paper covered aluminium conductor front view
IS no. Anti-rodent,Anti termite high temp. Aluminium CE marked ISO 14001

TECHNICAL DATA

Reference: IS-6162 (Part-1) :1971
Conductor: Round Aluminum Conductor Pure EC Grade
Insulation: Double Layer of Paper Covered with O, F & S Grade as per Customer Requirement
Messenger: Resistivity of Material 0.028264 Ohm mm2/m at 20°C
Test: Test at 5.5 KV to 10 KV

APPLICATIONS

Power Transmission: Commonly used in overhead power transmission lines, especially for long-distance applications.
Railway Electrification: Employed in railway systems for efficient power supply to trains.

BENEFITS

Lightweight: Easier to handle and install compared to other conductor types.
Effective Insulation: Paper covering provides excellent insulation properties, ensuring safe operation.
Corrosion Resistance: The aluminum conductor is resistant to corrosion, enhancing its longevity in outdoor environments.
Cost-Effective Solution: A budget-friendly option for power transmission needs.

SIZE CHART

Size in MM Covered Dia in MM Resistance at 20°C Nom. in
Ohm/M		 Size in MM Covered Dia in
MM		 Resistance
at 20°C Nom.in
Ohm/M
