PRICE LIST (PAPER COVERED ALUMINIUM CONDUCTOR)

ANODE ELECTRIC PVT. LTD.

Manufacture/Importer: Anocab
Registered Office: Plot No. 10, IT park, Bargi Hills, Jabalpur M.P.
Pincode:482003, State: Madhya Pradesh

Anocab Logo
GSTIN: 23AANCA7455R1ZX Mail: sales@anocab.com Contact No: 18002700075

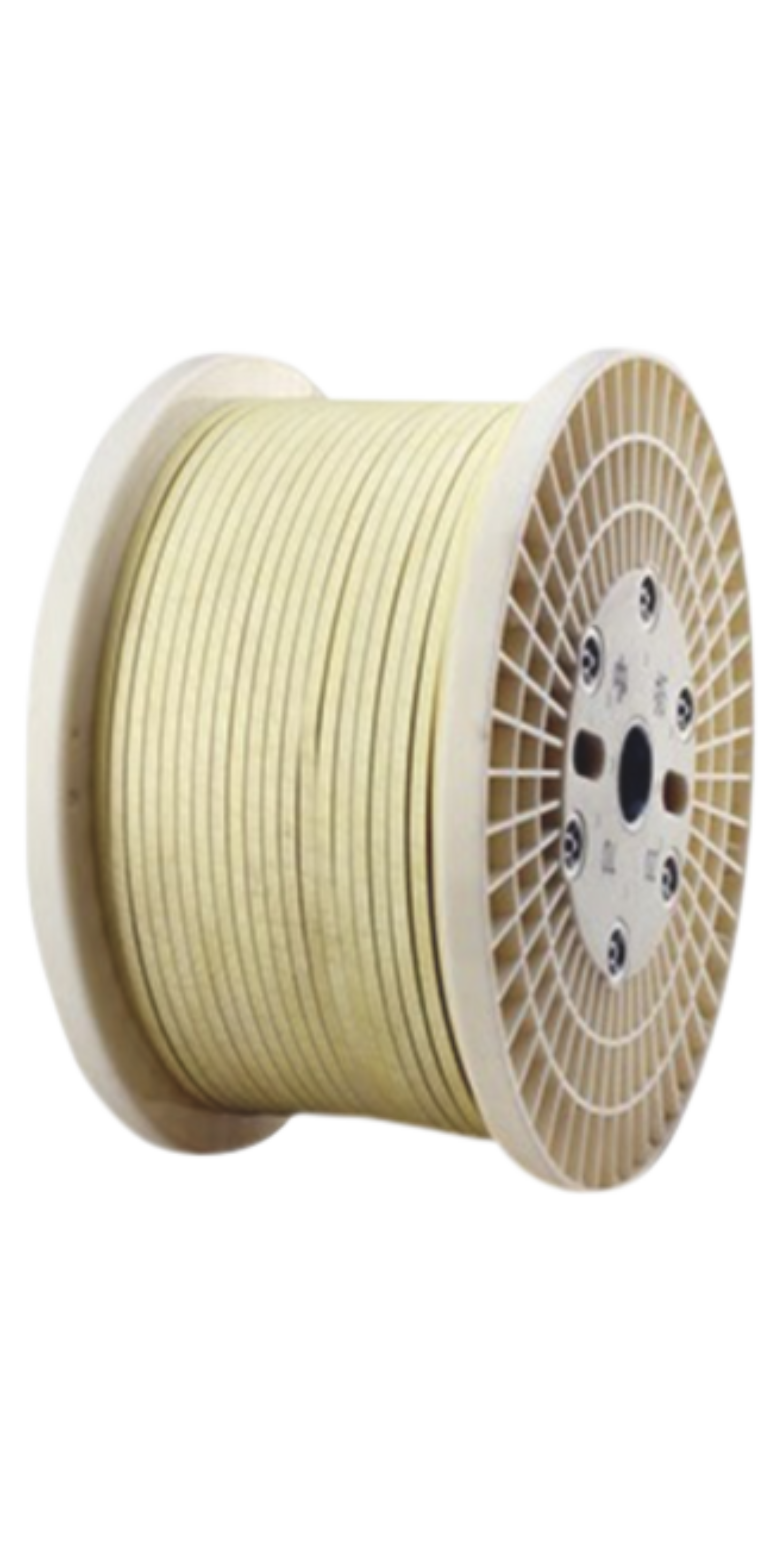

PAPER COVERED ALUMINIUM CONDUCTOR
Image S.NO. Size (SQ MM) Covered Dia in mm Resistance at 20°C (Ω/km) Size (SQ MM) Covered Dia in mm Resistance at 20°C (Ω/km) MRP
Conductor Image 1 0.80 1.085 0.05623 2.00 2.370 0.008997 ₹150
2 1.06 1.345 0.03203 2.12 2.490 0.008997 ₹100
3 1.25 1.540 0.02303 2.24 2.610 0.007172 ₹200
4 1.32 1.610 0.02065 2.36 2.735 0.006461 ₹300
5 1.40 1.715 0.01836 2.50 2.875 0.005758 ₹130
6 1.50 1.815 0.01599 2.65 3.025 0.005124 ₹180
7 1.60 1.915 0.01406 2.80 3.180 0.004590 ₹180
8 1.70 2.015 0.01245 3.00 3.380 0.003998 ₹180
9 1.80 2.120 0.01111 3.15 3.530 0.003626 ₹180
10 1.90 2.220 0.009969 3.35 3.735 0.003206 ₹180
TERMS AND CONDITIONS*
*The above rates are GST Paid Rate
*Freight Charges & any other statuory levies which shall be charged extra.
*Delivery : F.O.R. destination by road transport for order value above Rs. 2,00,000/-
*On To Pay basis for order values up to Rs. 2,00,000/-
PRODUCT DESCRIPTION
*Reference : IS-6162 (Part-1):1971.
*Conductor : Round Aluminium Conductor Pure EC grade Confirming to IS 4026-1969.
*Insulation : Double Layer of Paper Covered with O, F & S Grade as per Customer Requirement.
*Resistivity : Resistivity of Material 0.028264 Ohm mm2/m at 20°C.
*Test : Tested at 5.5 KV to 10 KV.
footer image form

THE PRICES ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
