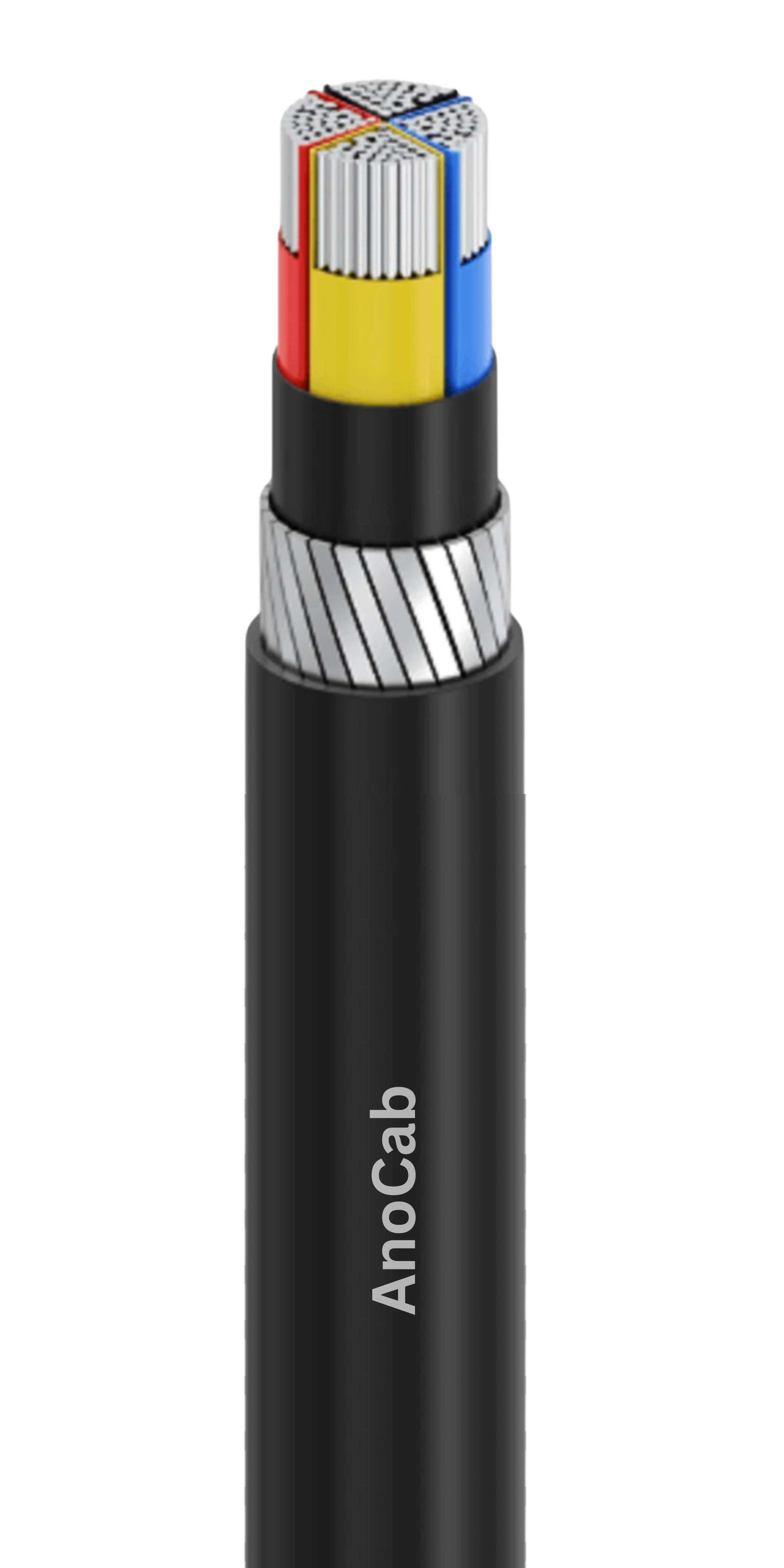

MULTICORE XLPE INSULATED ALUMINIUM ARMOURED CABLE.

ANODE ELECTRIC PVT. LTD.

Manufacture/Importer: Anocab
Registered Office: Plot No. 10, IT park, Bargi Hills, Jabalpur M.P.
Pincode:482003, State: Madhya Pradesh

Anocab Logo
GSTIN: 23AANCA7455R1ZX Mail: sales@anocab.com Contact No: 18002700075
MULTICORE XLPE INSULATED ALUMINIUM ARMOURED CABLE
Image Size (MM²) No. of Wires & Dia Of Each Wire Current Carrying Capacity CR @ 20°C (Ω/km) MRP
IN MM IN INCH Laid Direct In the Ground In Air (Ω/km) 2 CORE 3 CORE 4 CORE
2 CORE CABLE 3/4 CORE CABLE 2 CORE CABLE 3/4 CORE CABLE FLAT ROUND ROUND ROUND
Conductor Image
2.5 1.78 0.070 31 28 26 23 12.100 - - - -
4 2.25 0.088 43 34 39 31 7.410 - - - -
6 2.76 0.108 55 43 50 40 4.610 - - - -
10 3.56 0.14 71 57 67 43 3.08 - - - -
16 7/1.71 7/0.067 91 73 88 70 1.91 - - - -
25 7/2.13 7/0.084 120 94 117 96 1.2 - - - -
35 7/2.52 7/0.099 143 113 145 117 0.868 - - - -
50 7/3.02 7/0.119 167 133 176 142 0.641 - - - -
70 19/2.16 19/0.085 204 164 221 179 0.443 - - - -
95 19/2.52 19/0.099 245 196 271 221 0.320 - - - -
95 19/2.52 19/0.099 245 196 271 221 0.320 - - - -
TERMS AND CONDITIONS*
*The above rates are GST Paid Rate
*Freight Charges & any other statuory levies which shall be charged extra.
*Delivery : F.O.R. destination by road transport for order value above Rs. 5,00,000/-
*On To Pay basis for order values up to Rs. 5,00,000/-
PRODUCT DESCRIPTION
*Reference : I5 7098 PT-1.
*Conductor : EC Grade Aluminium Class 1 & 2 as per IS 8130.
*Insulation : XLPE insulated.
*Colour of core : Red & black for 2 core cable, red, yellow, blue for 3 core cable, red, yellow, blue & black for 4 core cable.
*Sheath : PVC Type ST-1, PVC Type-ST 2 as per IS 5831.
*Colour of sheath : Black and Other Colour as per requirement.
*Voltage Rating : Up to and including 1100 Volt.
*Packing & Marking : Standard packing of 500 mtr. in coil. & Other length available on request, cables are printed with marking of 'ANOCAB'.
footer image form

*THE PRICES ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE*
