ALUMINIUM CONDUCTOR GALVANISED STEEL REINFORCED

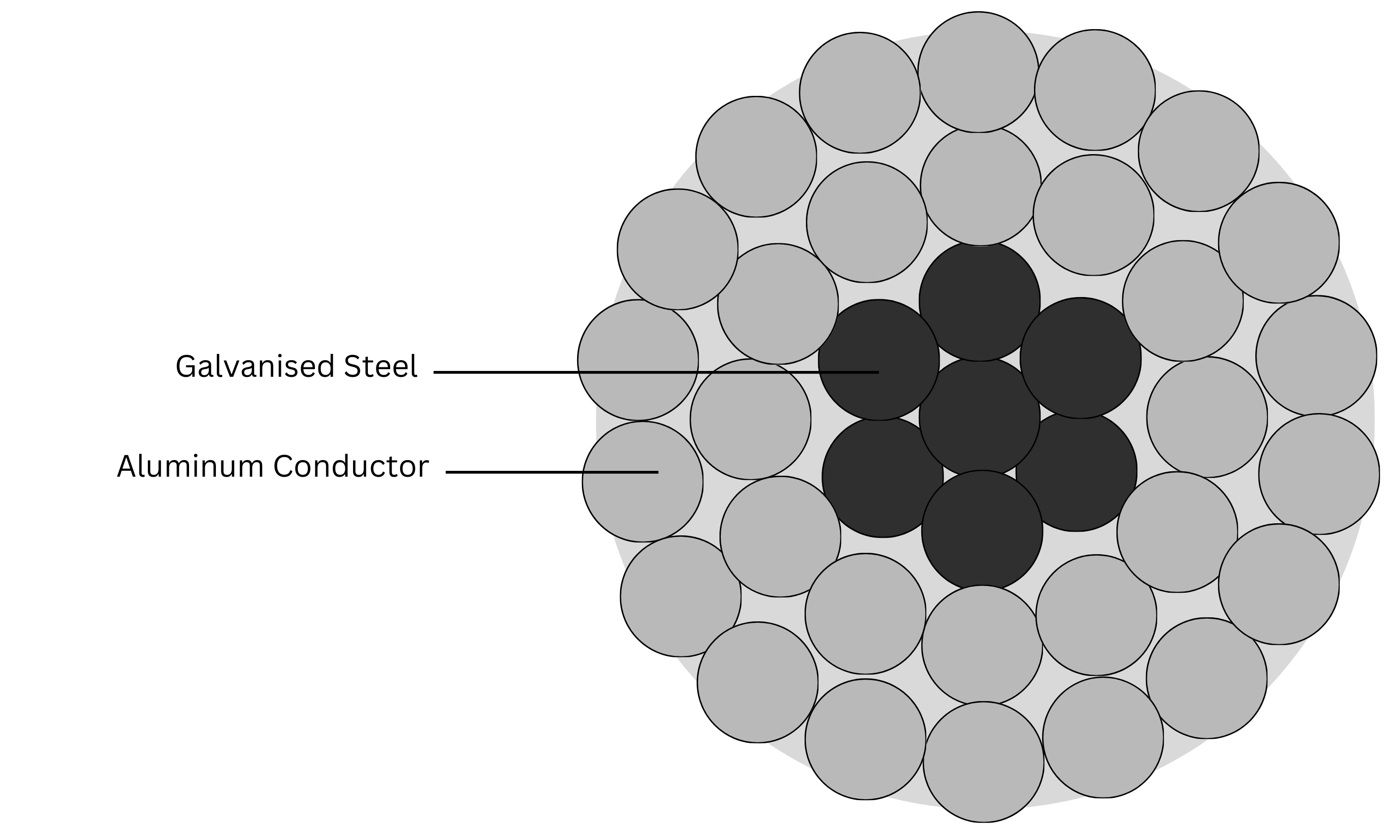

Aluminium Conductor Galvanised Steel Reinforced Side View

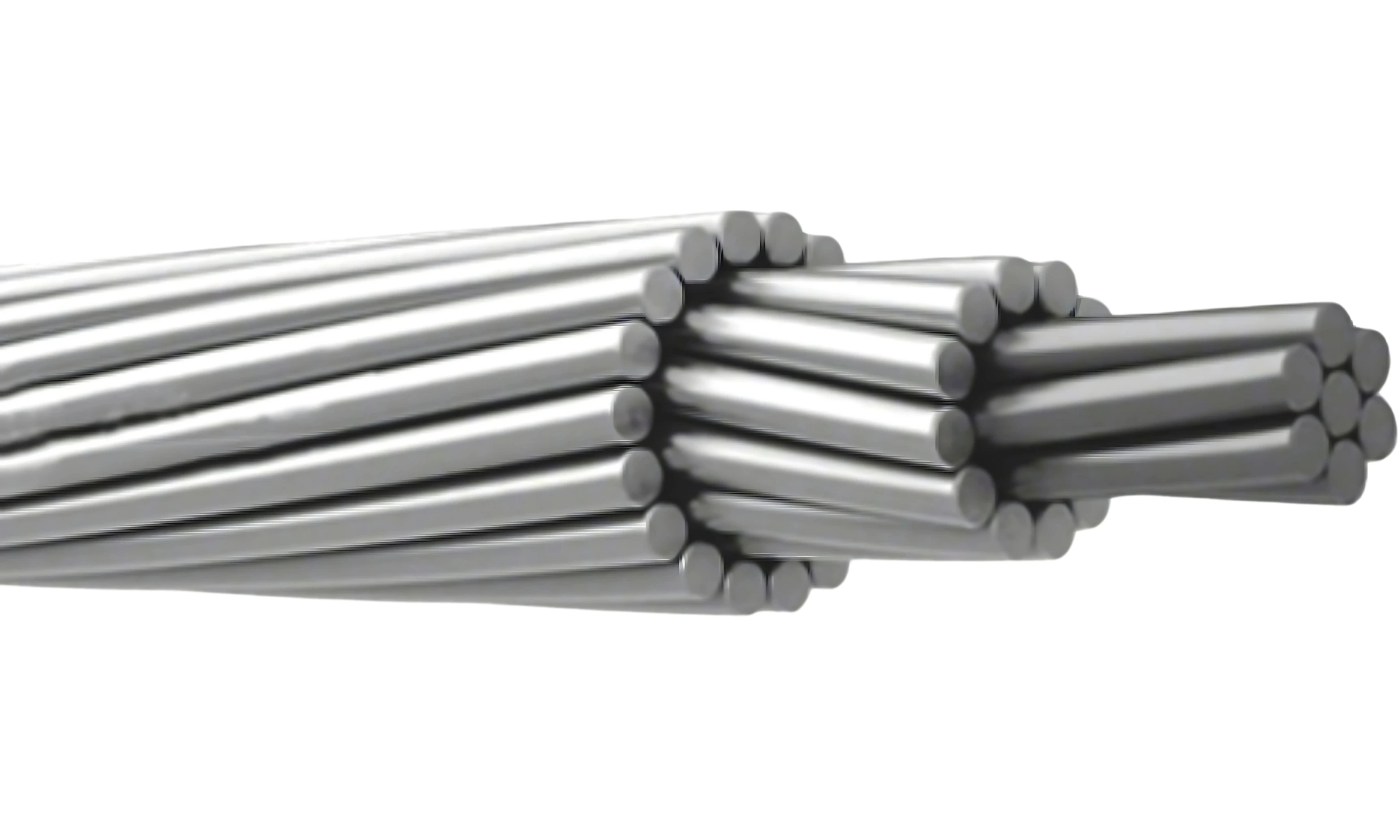

Aluminium Conductor Galvanised Steel Reinforced Front View

TECHNICAL DATA

Reference: IS-398 (Part-2) :1996
Conductor: Conductor Containing Aluminum & Galvanized Steel Wire Built in Concentric Layer, Material Conforming to IS:5484:1978
Resistivity of Material: 0.028264 Ohm mm2/m at 20°C

APPLICATIONS

Transmission Lines: Widely used in overhead transmission lines for high-voltage power distribution.
Rural Electrification: Suitable for extending electricity to remote areas.

BENEFITS

High Strength-to-Weight Ratio: ACSR provides the mechanical strength necessary for long spans and high tension while remaining lightweight.
Corrosion Resistance: Galvanized steel reinforcement protects against rust and environmental damage.
Cost Efficiency: Offers an economical solution for power transmission without compromising performance.
Flexibility: Suitable for various applications, making it a versatile choice for electrical engineers.

SIZE CHART

Size in SQ MM No. of
wire/Steel
Wire size
No. of
Wire/AL.
Wire Size
Breaking
Load in
KN
Resistance
at 20°C
in
Ohm/Km
10 1/1.5 6/1.5 3.97 2.7800
18 1/1.96 6/1.96 6.74 1.6180
20 1/2.11 6/2.11 7.61 1.3940
30 1/2.59 6/2.59 11.12 0.9289
50 1/3.35 6/3.35 18.25 0.5524
80 1/4.09 6/4.09 26.91 0.3712
100 7/1.57 6/4.72 32.41 0.2792
