PRICE LIST (TWIN TWISTED COPPER WIRE)ANODE ELECTRIC PVT. LTD.
Manufacture/Importer: Anocab |
|
|||||||
| GSTIN: 23AANCA7455R1ZX | Mail: sales@anocab.com | Contact No: 18002700075 | ||||||

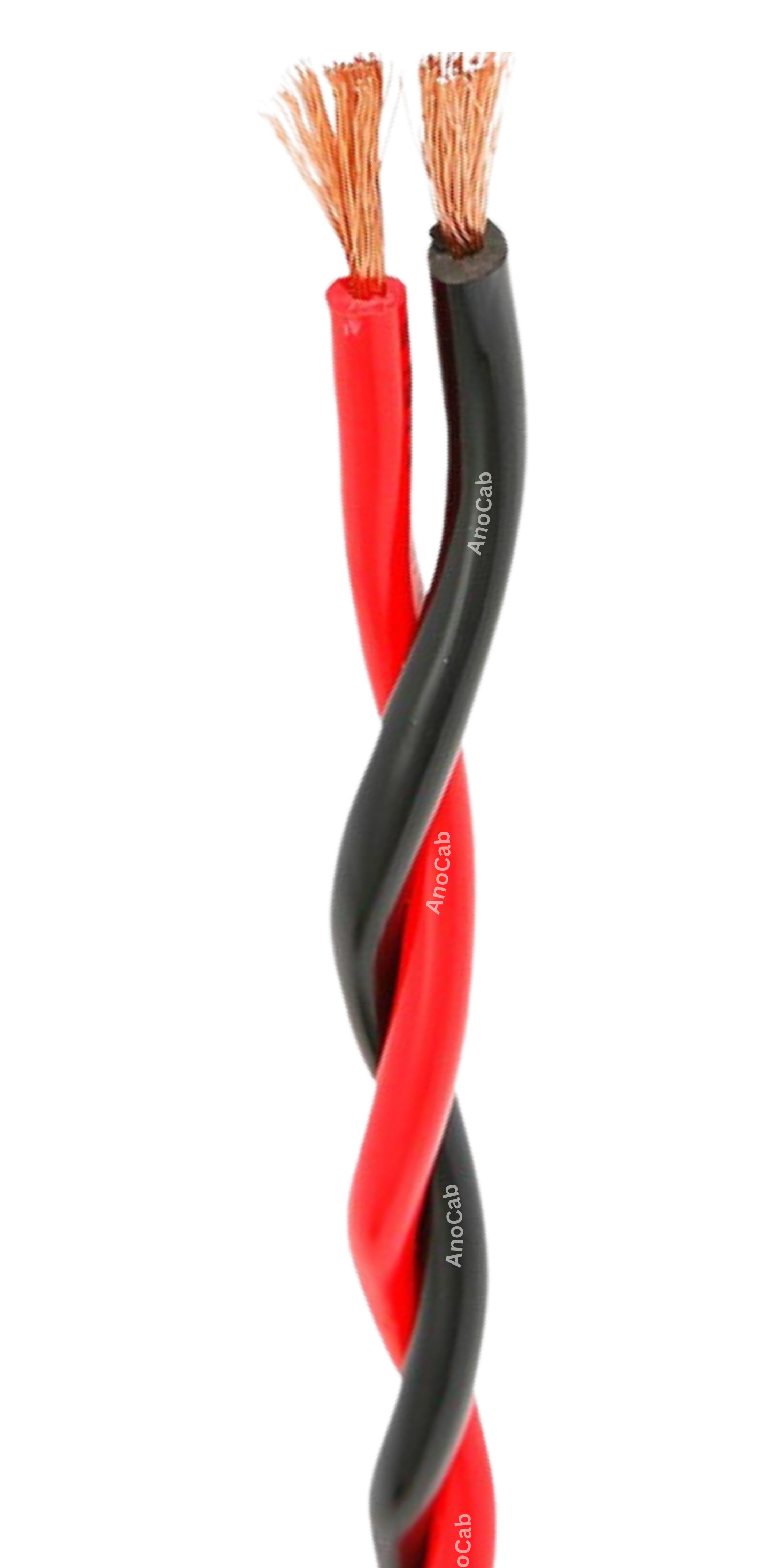

| TWIN TWISTED COPPER WIRE | ||||||||
| Image | Size | NO. OF WIRES & DIA. OF EACH WIRE | CURRENT CARRYING CAPACITY | Resistance at 20°C (Ω/km) | MRP | |||
|---|---|---|---|---|---|---|---|---|
| IN MM | IN INCH | BUNCHED AND ENCLOSED IN CONDUIT AND TRUNKING | CLIPPED DIRECT TO A OR ON A CABLE TRAY, BUNCHED OR ENCLOSED | |||||
 |
||||||||
| 0.5 | 16/0.20 | 16/0.00788 | 4 | 4 | 39 | - | ||
| 0.75 | 24/0.20 | 24/0.00788 | 7 | 7 | 26.00 | - | ||
| 1 | 32/0.20 | 32/0.00788 | 11 | 12 | 18.10 | - | ||
| 1.5 | 30/0.25 | 30/0.00985 | 13 | 16 | 12.10 | - | ||
| 2.5 | 50/0.25 | 50/0.00985 | 18 | 22 | 7.41 | - | ||
| 4 | 56/0.30 | 56/0.01181 | 24 | 29 | 4.95 | - | ||
| 6 | 84/0.30 | 84/0.01181 | 31 | 37 | 3.30 | - | ||
| TERMS AND CONDITIONS* | ||||||||
|
*The above rates are GST Paid Rate *Freight Charges & any other statuory levies which shall be charged extra. *Delivery : F.O.R. destination by road transport for order value above Rs. 5,00,000/- *On To Pay basis for order values up to Rs. 5,00,000/- |
||||||||
| PRODUCT DESCRIPTION | ||||||||
|
*Reference : IS 694:2010. *Voltage Grade : Up to and including 1100V. *Conductor : Electrolytic Grade Copper class-2, 5, as per IS:-8130:2013. *Insulation : PVC confirming to IS-5831 and Formulated With FR Properties and Heat resistance up to 85°C. *Insulation : IS 5831, Type A/C FR 70°C. *Colours : Red, black & other Colour on customer demand. *Marking : The cables are printed with marking of 'ANOCAB'. *Packing : 90 mtr. coil is packed in protective Plastic bag & Longer length on Customer demand. |
||||||||
|
||||||||
| *THE PRICES ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE* | ||||||||
