PRICE LIST FOR TELECOM SWITCH BOARD CABLES

ANODE ELECTRIC PVT. LTD.

Manufacture/Importer: Anocab
Registered Office: Plot No. 10, IT park, Bargi Hills, Jabalpur M.P.
Pincode:482003, State: Madhya Pradesh

Anocab Logo
GSTIN: 23AANCA7455R1ZX Mail: sales@anocab.com Contact No: 18002700075
TELECOM SWITCH BOARD CABLE
IMAGE NO. OF PAIR LOOP RESISTANCE MRP
0.4MM 0.5MM 0.63MM 0.7MM

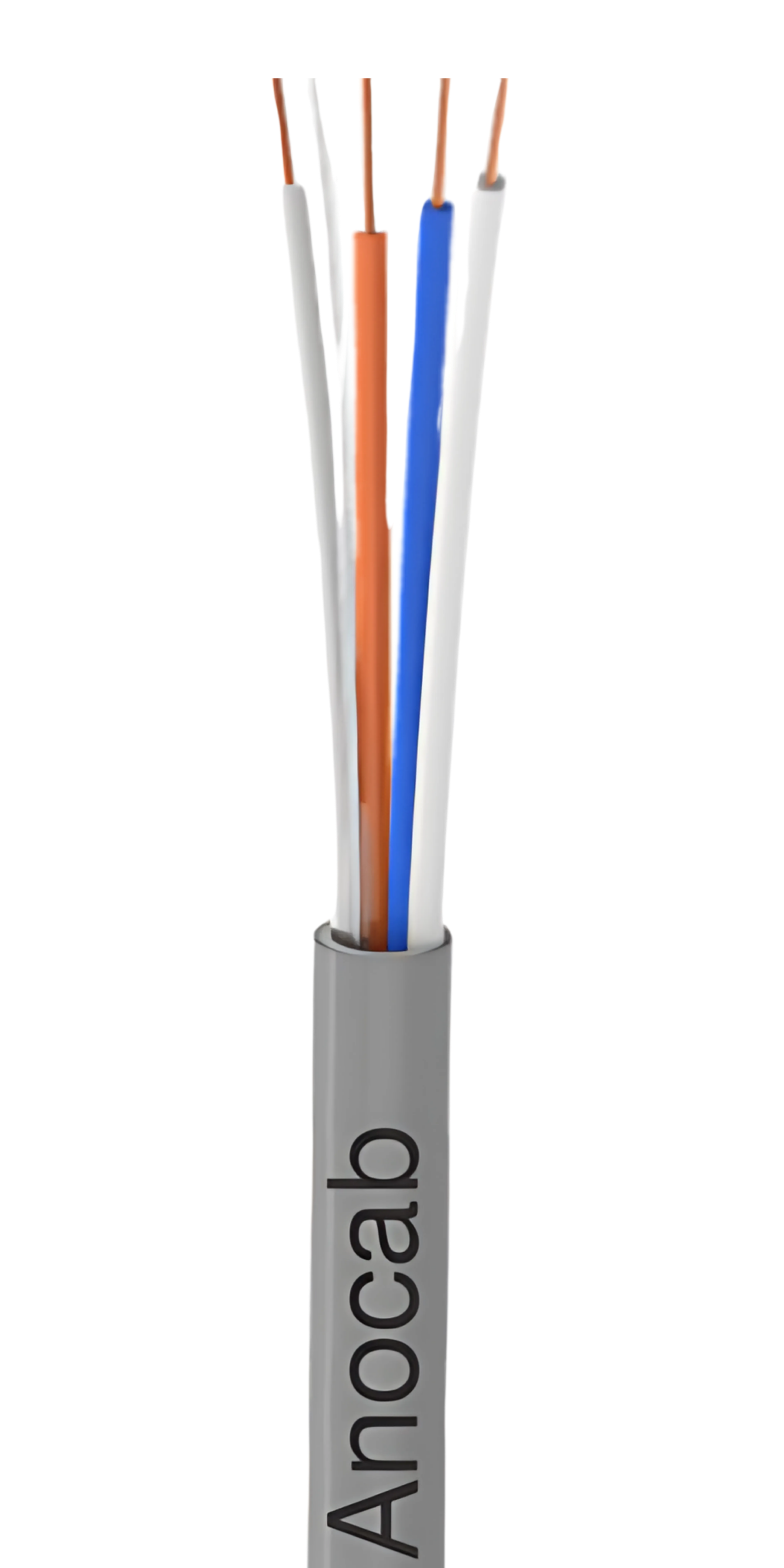

Conductor Image
2 Pair 286 Ω 184 Ω 128 Ω 90 Ω -
5 Pair 286 Ω 184 Ω 128 Ω 90 Ω -
10 Pair 286 Ω 184 Ω 128 Ω 90 Ω -
20 Pair 286 Ω 184 Ω 128 Ω 90 Ω -
25 Pair 286 Ω 184 Ω 128 Ω 90 Ω -
30 Pair 286 Ω 184 Ω 128 Ω 90 Ω -
50 Pair 286 Ω 184 Ω 128 Ω 90 Ω -
TERMS AND CONDITIONS*
*The above rates are GST Paid Rate
*Freight Charges & any other statuory levies which shall be charged extra.
*Delivery : F.O.R. destination by road transport for order value above Rs. 5,00,000/-
*On To Pay basis for order values up to Rs. 5,00,000/-
PRODUCT DESCRIPTION
*Reference : DOT TEC Spec No: G/WIR-06/02.
*Test Voltage: 2000 V spark Tester.
*Conductor : Annealed Tinned Copper Conductor.
*Insulation : Hard PVC confirming to IS-13176 (1991) type-2.
*Colours : White, Blue, Orange, Green, Brown & Grey Colour as per DOT.
*Marking : The cables are printed with marking of 'ANOCAB'.
*Packing : 100 mtr. & 200 mtr. coil is packed in protective Plastic bag.
footer image form

*THE PRICES ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE*
