PRICE LIST (SUBMERSIBLE WINDING WIRE)ANODE ELECTRIC PVT. LTD.
Manufacture/Importer: Anocab |
|
||||||||
| GSTIN: 23AANCA7455R1ZX | Mail: sales@anocab.com | Contact No: 18002700075 | |||||||

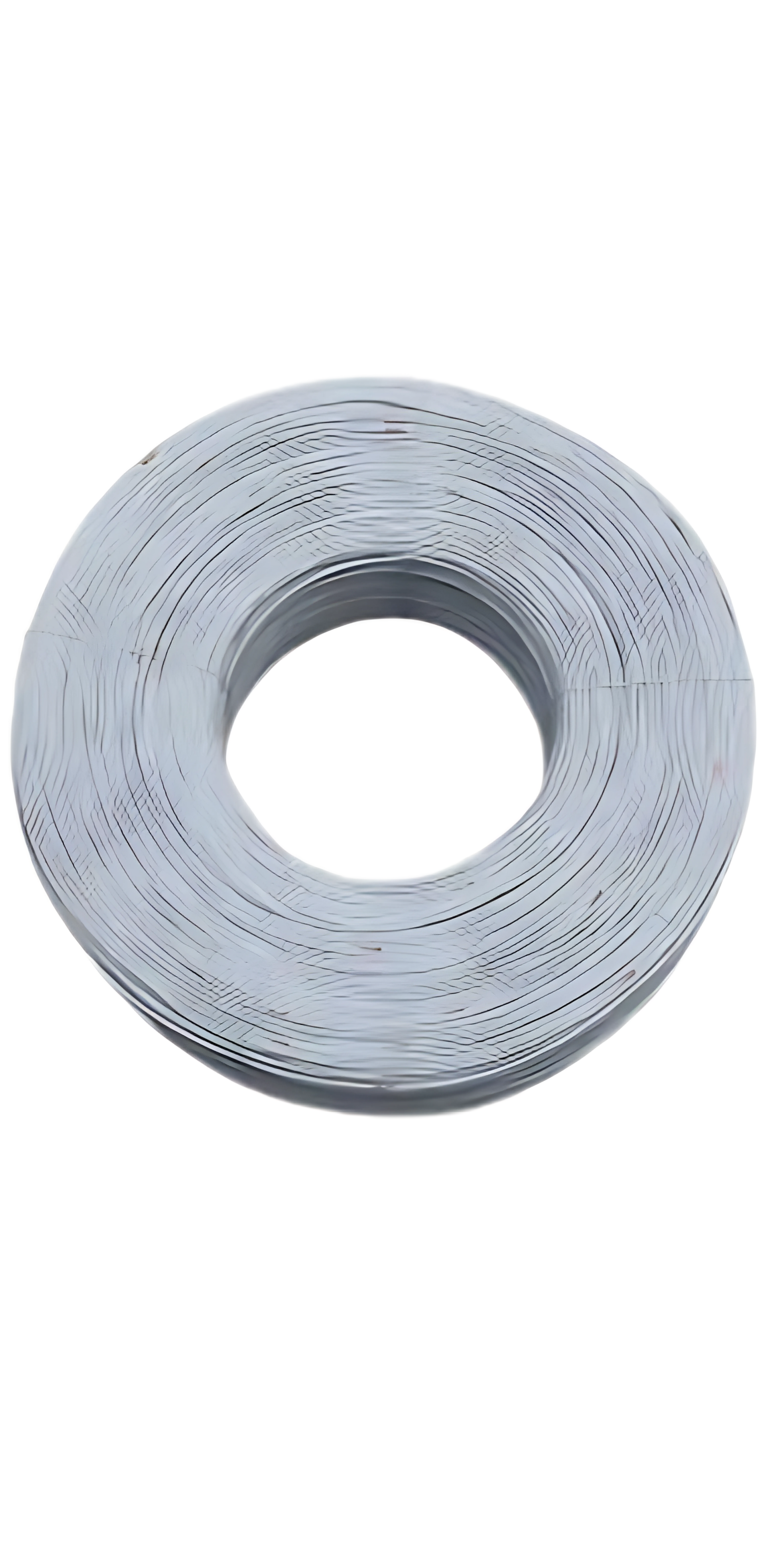

| Submersible Winding Wire | |||||||||
| Image | Product Code | Size (IN MM) | Covered Dia (IN MM) | Resistance at 20°C (Ω/km) | Size (IN MM) | Covered Dia (IN MM) | Resistance at 20°C (Ω/km) | MRP | |
|---|---|---|---|---|---|---|---|---|---|
 |
|||||||||
| 0.40 | 0.800 | 140 | 0.95 | 1.350 | 25 | - | |||
| 0.45 | 0.850 | 112 | 1.00 | 1.450 | 22 | - | |||
| 0.50 | 0.900 | 90 | 1.10 | 1.550 | 19 | - | |||
| 0.55 | 0.950 | 75 | 1.20 | 1.650 | 16 | - | |||
| 0.60 | 1.000 | 62 | 1.30 | 1.750 | 13 | - | |||
| 0.65 | 1.050 | 54 | 1.40 | 1.900 | 11 | - | |||
| 0.70 | 1.100 | 46 | 1.50 | 2.000 | 10 | - | |||
| 0.75 | 1.150 | 40 | 1.60 | 2.100 | 9 | - | |||
| 0.80 | 1.200 | 35 | 1.70 | 2.200 | 8 | - | |||
| 0.85 | 1.300 | 28 | 1.80 | 2.300 | 7 | - | |||
| TERMS AND CONDITIONS* | |||||||||
|
*The above rates are GST Paid Rate *Freight Charges & any other statuory levies which shall be charged extra. *Delivery : F.O.R. destination by road transport for order value above Rs. 5,00,000/- *On To Pay basis for order values up to Rs. 5,00,000/- |
|||||||||
| PRODUCT DESCRIPTION | |||||||||
|
*Reference : IS-8783 Part 4 section 3 for Polyster & Polypropylene taped, IS-8783 Part 4 section 1 for HR PVC. *Conductor : As per IS-8783 part 1 annealed copper. *Insulation : Polypropylene and Polyster Tape, HR Pvc as per Is 5831. *Resistivity : Resistivity Of Material 0.01724 Ohm mm2/m at 20. *Test : Tested at 3 KV |
|||||||||
|
|||||||||
| *THE PRICES ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE* | |||||||||
