PRICE LIST FOR PV SOLAR CABLEANODE ELECTRIC PVT. LTD.
Manufacture/Importer: Anocab |
|
|||||||
| GSTIN: 23AANCA7455R1ZX | Mail: sales@anocab.com | Contact No: 18002700075 | ||||||

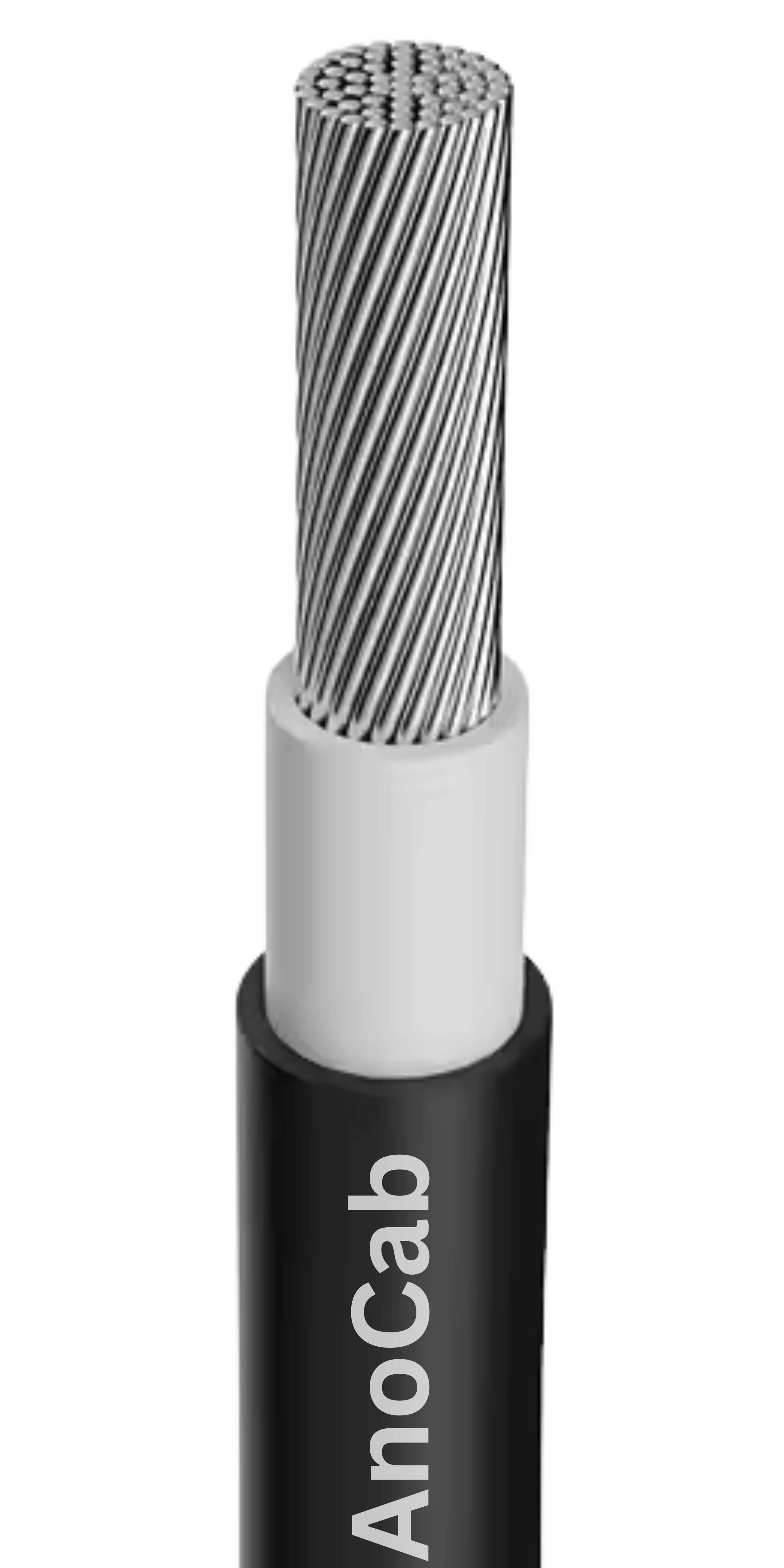

| PV SOLAR CABLE | ||||||||
| Image | Size(IN MM²) | No. Of Wires & Dia. Of Each Wire | Current Carrying Capacity Amb. @60◦C | CR @ 20◦C | MRP | |||
|---|---|---|---|---|---|---|---|---|
| IN MM | Single Cable in Air | Single Cable on Surface | Two Cable on Surface | Ω/km | ||||
 |
||||||||
| 1.5 Mm² | 30/0.25 | 30 | 29 | 24 | 13.70 | - | ||
| 2.5 Mm² | 50/0.25 | 41 | 39 | 33 | 8.21 | - | ||
| 4 Mm² | 56/0.30 | 55 | 52 | 44 | 5.09 | - | ||
| 6 Mm² | 84/0.30 | 70 | 67 | 57 | 3.39 | - | ||
| 10 Mm² | 80/0.40 | 98 | 93 | 79 | 1.95 | - | ||
| 16 Mm² | 126/0.40 | 132 | 125 | 107 | 1.24 | - | ||
| 25 Mm² | 196/0.40 | 176 | 167 | 142 | 0.795 | - | ||
| 35 Mm² | 276/0.40 | 218 | 207 | 176 | 0.565 | - | ||
| 50 Mm² | 396/0.40 | 276 | 262 | 221 | 0.393 | - | ||
| TERMS AND CONDITIONS* | ||||||||
| s
*The above rates are GST Paid Rate *Freight Charges & any other statuory levies which shall be charged extra. *Delivery : F.O.R. destination by road transport for order value above Rs. 2,00,000/- *On To Pay basis for order values up to Rs. 2,00,000/- |
||||||||
| PRODUCT DESCRIPTION | ||||||||
|
*Reference : TUV: EN50618. *Voltage Grade : Up to and including 600/1000 V AC, 1800 V DC. *Conductor : Electrolytic Grade Annealed Tinned Copper class-5. *Insulation : Crosslinked Halogen Free & Flame Retardant Compound. *Sheath : XLPO Compound Ozone and UV resistant. *Colours : Red, black & other Colour on customer demand. *Marking : The cables are printed with marking of 'ANOCAB'. *Packing : 100 mtr. coil is packed in protective Plastic bag & Longer length on Customer demand. |
||||||||
 |
||||||||
| *THE PRICES ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE* | ||||||||
