PRICE LIST (SPEAKER CABLE)ANODE ELECTRIC PVT. LTD.
Manufacture/Importer: Anocab |
|
||||||||||
| GSTIN: 23AANCA7455R1ZX | Mail: sales@anocab.com | Contact No: 18002700075 | |||||||||
| SPEAKER CABLE | |||||||||||

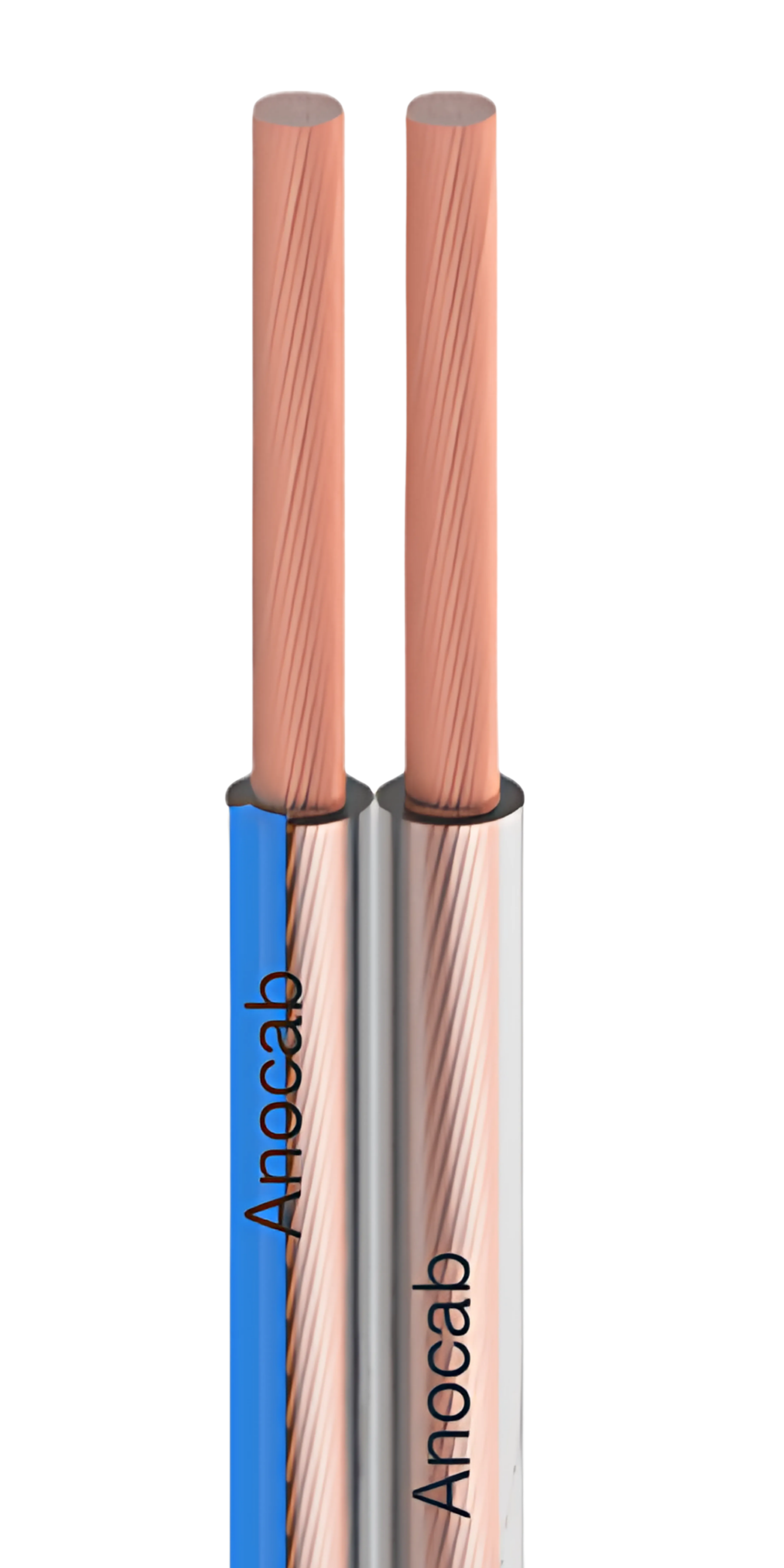

| Image | S.NO. | Size | NO. OF WIRES & DIA. OF EACH WIRE | CURRENT CARRYING CAPACITY | Resistance at 20°C (Ω/km) | MRP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| IN MM | IN INCH | BUNCHED AND ENCLOSED IN CONDUIT AND TRUNKING | CLIPPED DIRECT TO A OR ON A CABLE TRAY, BUNCHED OR ENCLOSED | ||||||||
 |
|||||||||||
| 1 | 0.5 | 16/0.20 | 16/0.00788 | 4 | 4 | 39.00 | - | ||||
| 2 | 0.75 | 24/0.20 | 24/0.00788 | 7 | 7 | 26.00 | - | ||||
| 3 | 1 | 32/0.20 | 32/0.00788 | 11 | 12 | 18.10 | - | ||||
| 4 | 1.5 | 30/0.25 | 30/0.00985 | 13 | 16 | 12.10 | - | ||||
| TERMS AND CONDITIONS* | |||||||||||
|
*The above rates are GST Paid Rate *Freight Charges & any other statuory levies which shall be charged extra. *Delivery : F.O.R. destination by road transport for order value above Rs. 5,00,000/- *On To Pay basis for order values up to Rs. 5,00,000/- |
|||||||||||
| PRODUCT DESCRIPTION | |||||||||||
|
*Reference : IS 694:2010. *Voltage Grade: Up to and including 450/750V. *Conductor : Electrolytic Grade Copper class-5, as per IS:-8130:2013. *Insulation : PVC confirming to IS-5831 and Formulated With FR Properties and Heat resistance up to 85°C. *Insulation : IS 5831, Type A/C FR 70°C. *Colours : Transparent colour with colored strip for Core identification & other Colour on customer demand. *Marking : The cables are printed with marking of 'ANOCAB'. Packing : 90 mtr. coil is packed in protective Plastic bag & Longer length on Customer demand. |
|||||||||||
|
|||||||||||
| *THE PRICES ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE* | |||||||||||
