SINGLE CORE XLPE INSULATED ALUMINIUM COPPER ARMOURED UNARMOURED CABLE

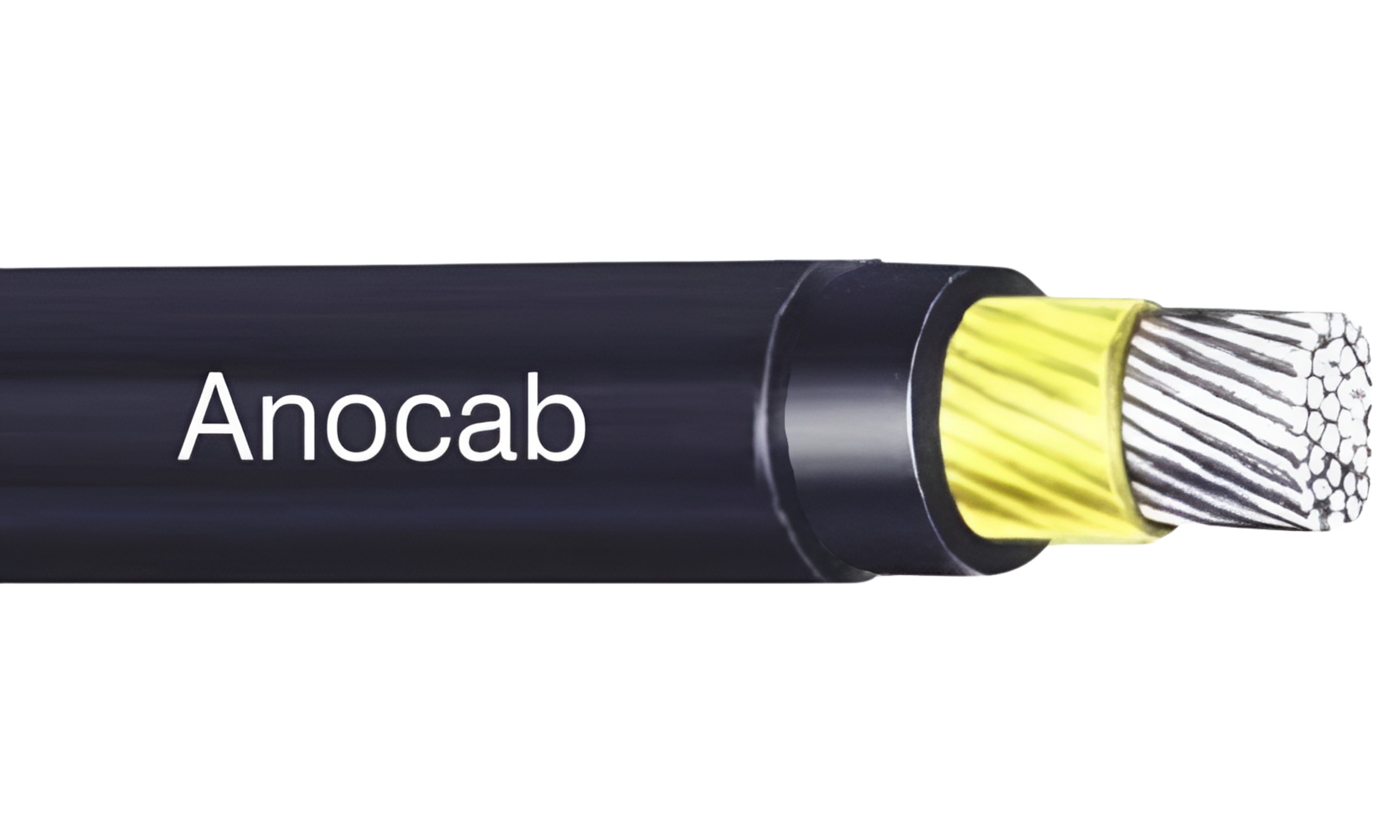

Single core XLPE insulated aluminium copper armored unarmored cable side view

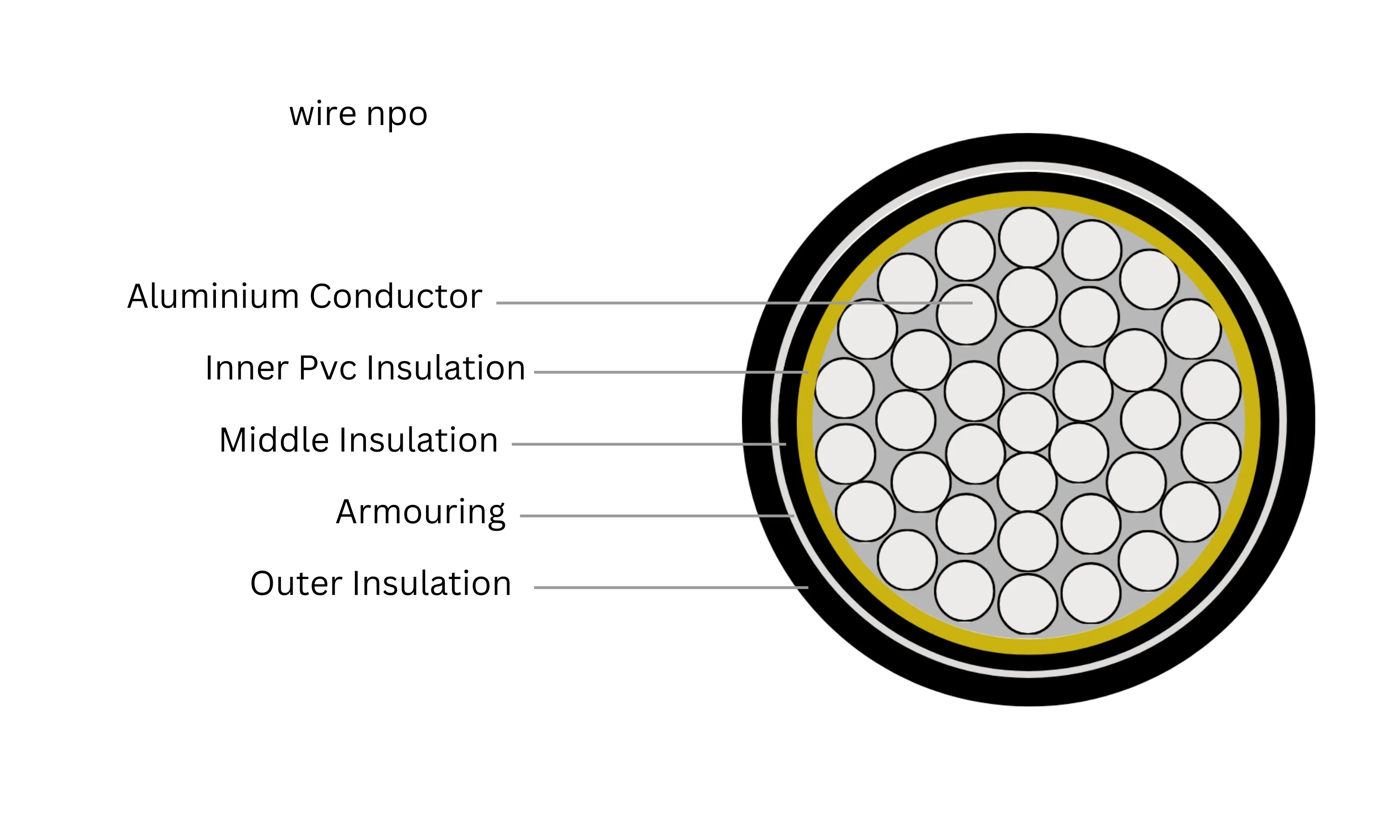

Single core XLPE insulated aluminium copper armored unarmored cable front view
IS no. Anti-rodent,Anti termite high temp. Aluminium CE marked ISO 14001

TECHNICAL DATA

Reference: IS 7098 PT-I
Voltage Grade: Up to and including 1100 volt
Conductor: EC grade Annealed Aluminum/Copper class 1 & 2 as per IS 8130
Insulation: XLPE insulation As per IS 7098 Pt-1
Colour of Core: Red, yellow, blue & black
Sheath: PVC Type ST-I, PVC Type -ST 2 as per IS 5831
Colour of Sheath: Black and Other Colour as per requirement
Marking & Packing: Standard packing of 500 mtr. in coil. & Other length available on request, cables are printed with marking of ‘ANOCAB’

APPLICATIONS

Power Distribution: Widely used for low-voltage power distribution in commercial and industrial settings, these cables ensure efficient energy transmission across multiple circuits.
Control Panels: Ideal for control wiring in panels, switchgear, and automation systems, providing reliable signal transmission and power supply to various components.
Building Wiring: Used in both residential and commercial buildings for wiring multiple electrical circuits, providing power to lights, outlets, and electrical equipment.
Renewable Energy: Often deployed in solar and wind energy systems, where multicore cables are essential for managing multiple electrical connections.
Automotive Applications: Suitable for automotive wiring systems where multicore cables are needed to manage various electrical circuits within the vehicle.
Instrumentation: Used in complex industrial instrumentation and control systems, facilitating the efficient transmission of signals and power between equipment.

BENEFITS

Lightweight: Aluminum is significantly lighter than copper, making these cables easier to handle and install, especially in large systems.
Cost-Effective: Multicore aluminum cables are an economical solution compared to copper cables, offering substantial savings without compromising performance.
Durable: The PVC insulation provides excellent protection against moisture, chemicals, and corrosion, ensuring long-term durability in various environmental conditions.
Space Saving: The multicore design combines multiple electrical circuits into a single cable, reducing installation space and simplifying complex wiring systems.
Heat Resistant: PVC insulation offers heat and flame-resistant properties, providing safety in environments where electrical cables may be exposed to high temperatures or fire risks.
Energy Efficient: While lighter than copper, aluminum maintains good electrical conductivity, ensuring efficient power transmission and reducing energy loss.

SIZE CHART

Size No of Wires & Dia. Of Each Wire Current Carrying Capacity
(Armoured/Un-armoured Aluminium Cable)		 Current Carrying Capacity
(Armoured/Un-armoured Copper Cable)		 Aluminium Conductor
(Ω/km @ 20°C)		 Copper Conductor
(Ω/km @ 20°C)
in MM In Inch Laid Direct in the Ground In Air Laid Direct in the Ground In Air
6 mm2 2.76 0.108 55 50 67 61 4.610 4.610
10 mm2 2.76 0.108 55 50 67 61 4.610 3.080
10 mm2 3.56 0.140 69 64 90 83 3.080 1.830
16 mm2 7/1.71 7/0.067 89 84 115 108 1.910 1.150
25 mm2 7/2.13 7/0.084 115 112 148 144 1.200 0.727
35 mm2 7/2.52 7/0.099 137 135 177 176 0.868 0.524
50 mm2 7/3.02 7/0.119 161 165 208 212 0.641 0.387
70 mm2 19/2.16 19/0.085 198 209 255 269 0.443 0.268
95 mm2 19/2.25 19/0.099 243 264 312 340 0.320 0.193

RELATED PRODUCTS

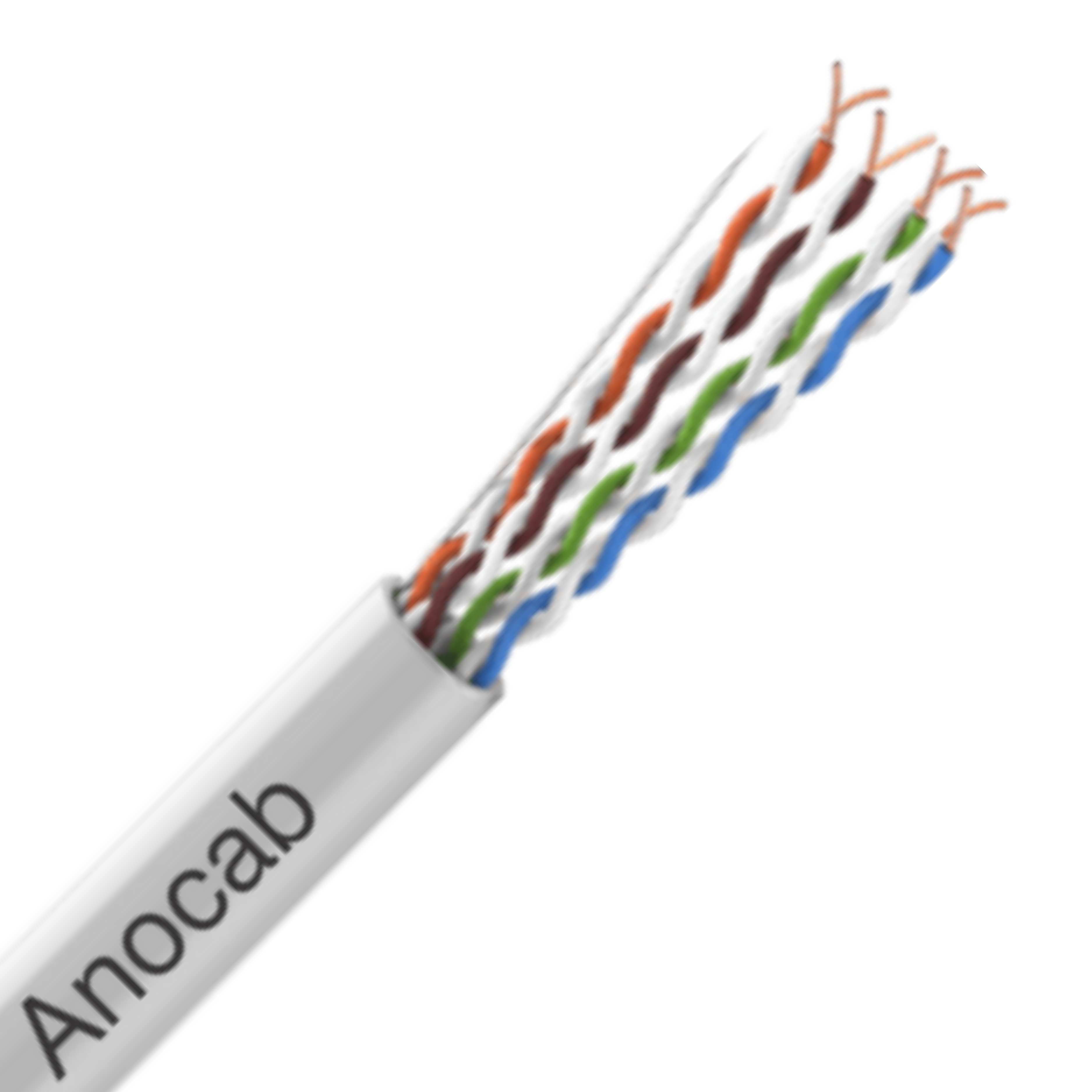

LAN cable
LAN cable

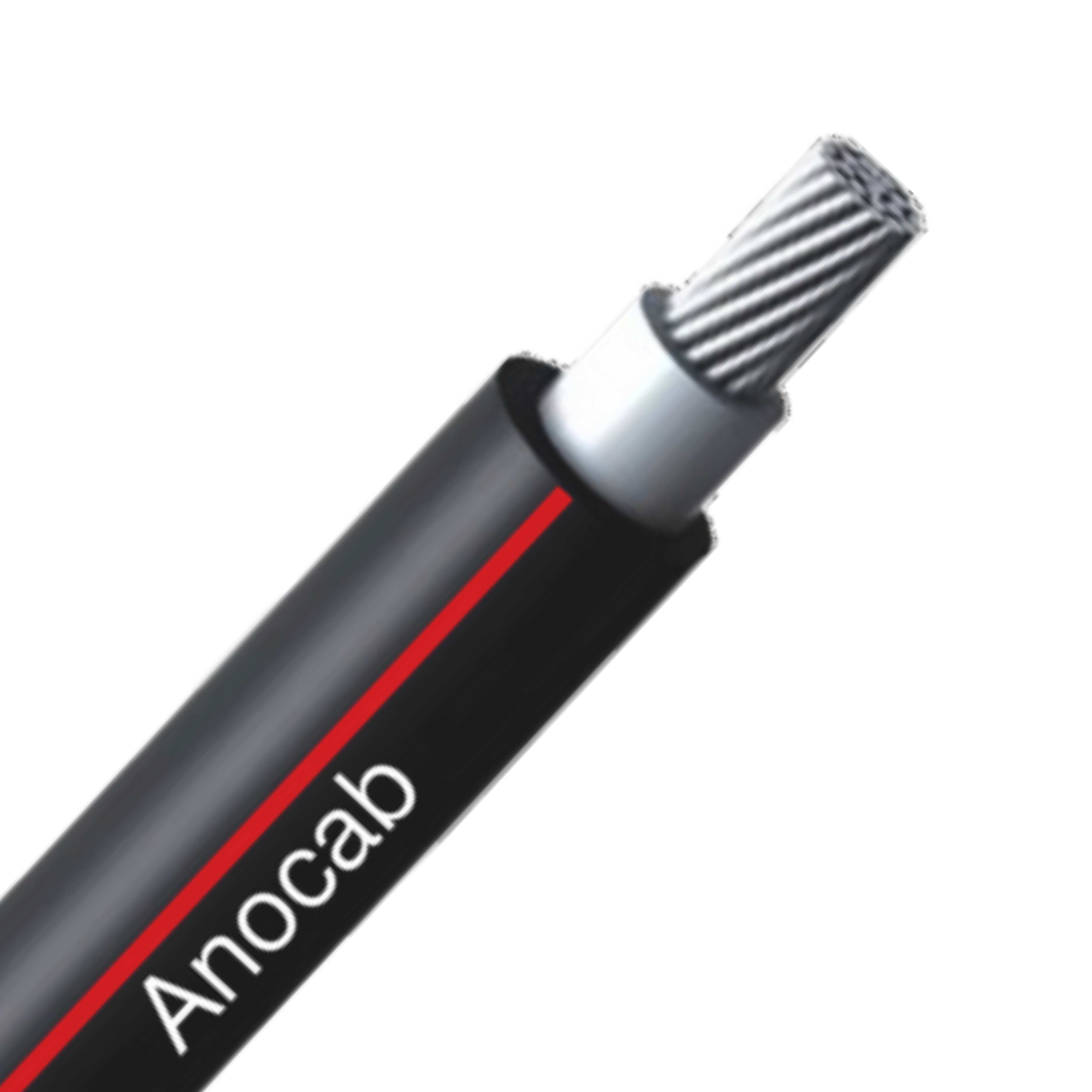

PV Solar cable
PV Solar cable

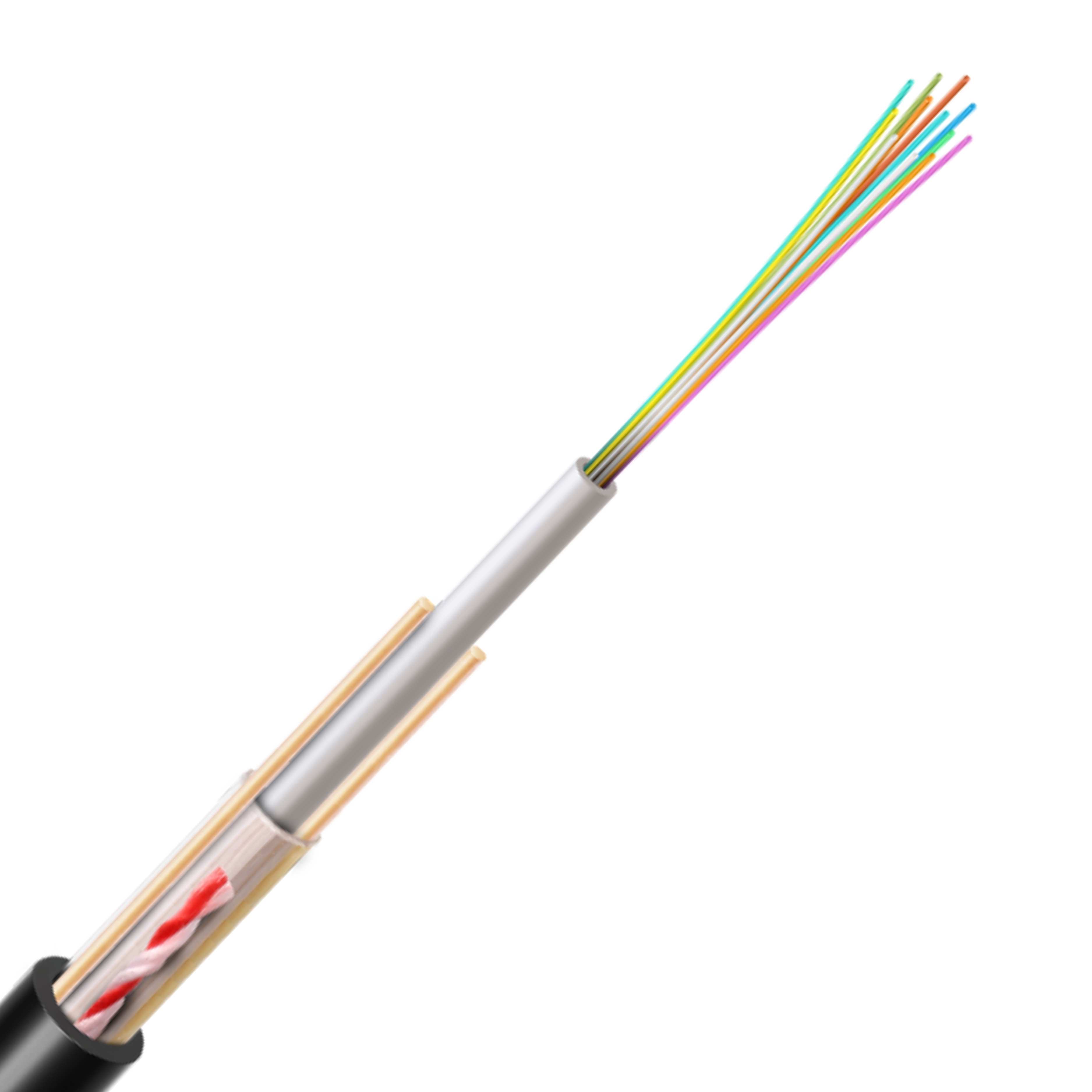

Uni-Tube Unarmoured Optical Fiber cable
