PRICE LIST (PVC INSULATED SUMMERSIBLE CABLE)ANODE ELECTRIC PVT. LTD.
Manufacture/Importer: Anocab |
|
|||||||
| GSTIN: 23AANCA7455R1ZX | Mail: sales@anocab.com | Contact No: 18002700075 | ||||||
| PVC INSULATED SUBMERSIBLE CABLE | ||||||||
| Image | Size (SQ MM) | NO. OF WIRES AND DIA OF EACH WIRE | CURRENT CARRYING CAPACITY | Resistance at 20°C (Ω/km) | MRP | |||
|---|---|---|---|---|---|---|---|---|
| IN MM | IN INCH | |||||||
 |
||||||||
| 1 | 32/0.20 | 32/0.00788 | 10 | 19.50 | - | |||
| 1.5 | 30/0.25 | 30/0.00985 | 13 | 13.30 | - | |||
| 2.5 | 50/0.25 | 50/0.00985 | 17 | 7.98 | - | |||
| 4 | 56/0.30 | 56/0.01181 | 22 | 4.95 | - | |||
| 6 | 84/0.30 | 84/0.01181 | 28 | 3.30 | - | |||
| TERMS AND CONDITIONS* | ||||||||
|
*The above rates are GST Paid Rate *Freight Charges & any other statuory levies which shall be charged extra. *Delivery : F.O.R. destination by road transport for order value above Rs. 5,00,000/- *On To Pay basis for order values up to Rs. 5,00,000/- |
||||||||
| PRODUCT DESCRIPTION | ||||||||
|

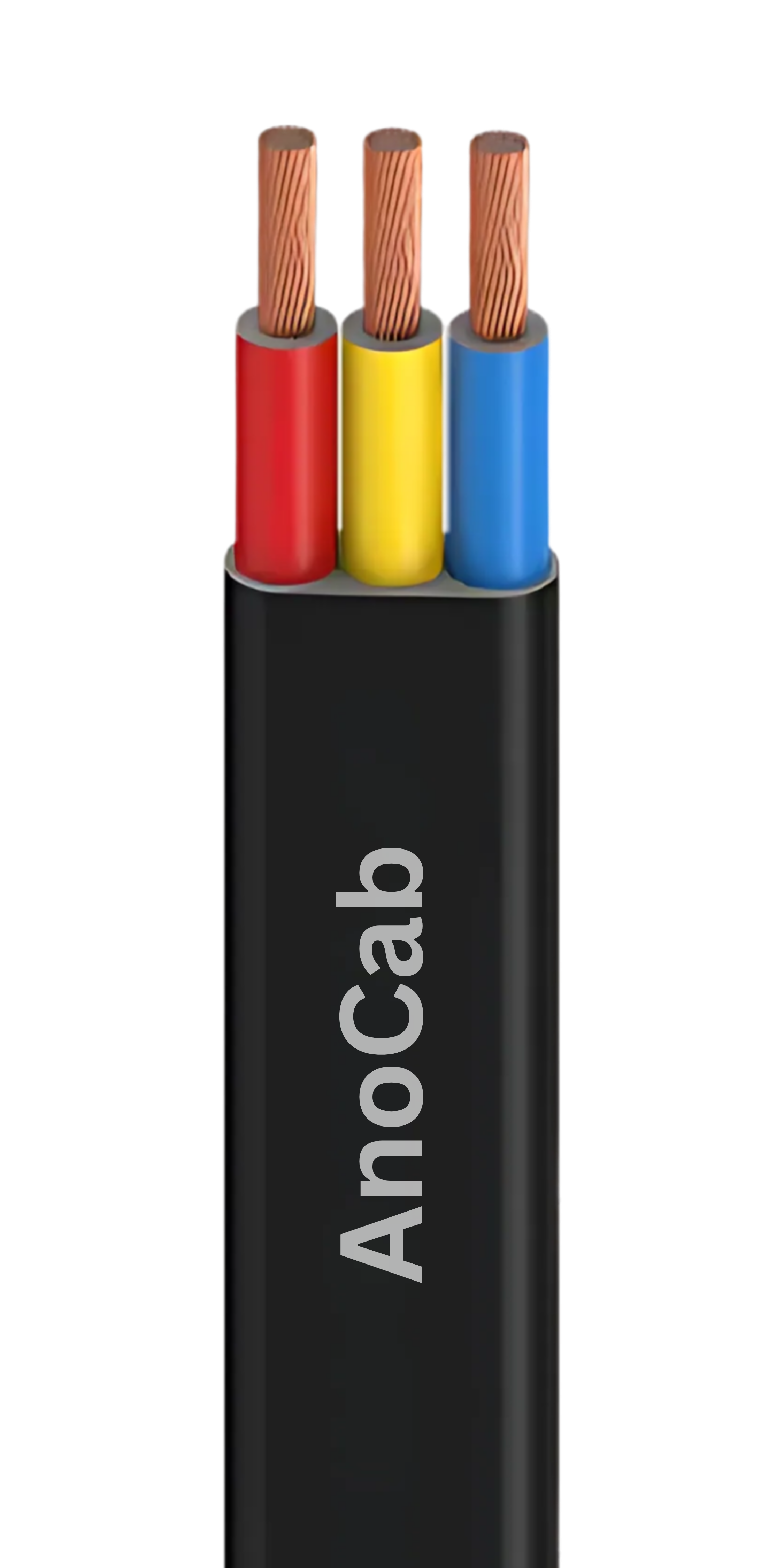

*Conductor : Electrolytic grade annealed copper Class 2, 5 as per IS 8130. *Insulation : PVC Type A as per IS:5831. *Colour of core : Red, yellow, blue. *Sheath : PVC Type ST-1, PVC Type - ST 2 as per IS 5831. *Colour of sheath : Black and Other Colour as per Customer demand. *Voltage Rating : Up to and including 1100V. *Packing & Marking : Standard packing of 300/500 mtr. in coil. & Other length available on request, cables are printed with marking of 'ANOCAB'. |
||||||||
|
||||||||
| *THE PRICES ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE* | ||||||||
