PRICE LIST (MULTICORE PVC INSULATED ALUMINIUM UNARMOURED CABLE)

ANODE ELECTRIC PVT. LTD.

Manufacture/Importer: Anocab
Registered Office: Plot No. 10, IT park, Bargi Hills, Jabalpur M.P.
Pincode:482003, State: Madhya Pradesh

Anocab Logo
GSTIN: 23AANCA7455R1ZX Mail: sales@anocab.com Contact No: 18002700075

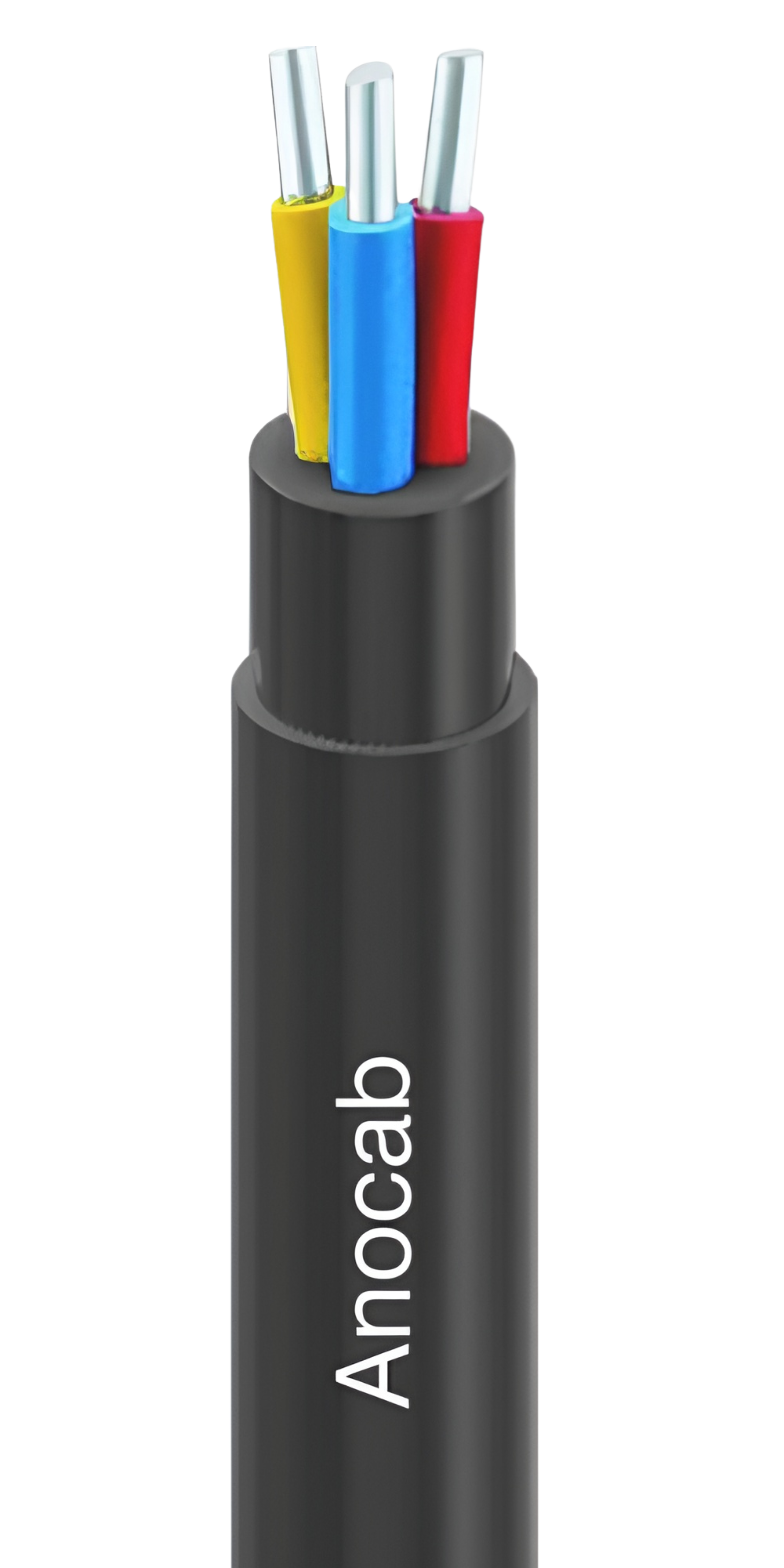

MULTICORE PVC INSULATED ALUMINIUM UNARMOURED CABLE
Image Size (MM²) No. of Wires & Dia Of Each Wire Current Carrying Capacity CR @ 20°C (Ω/km) MRP
IN MM IN INCH Laid Direct In the Ground In Air (Ω/km) 2 CORE 3 CORE 4 CORE
2 CORE CABLE 3/4 CORE CABLE 2 CORE CABLE 3/4 CORE CABLE FLAT ROUND ROUND ROUND
Conductor Image
2.5 1.78 0.070 25 21 21 18 12.10 - - - -
4 2.25 0.088 36 32 32 28 7.410 - - - -
6 2.76 0.108 46 40 42 36 4.610 - - - -
10 3.56 0.14 63 52 56 48 3.080 - - - -
16 1.71 0.067 80 68 71 61 1.910 - - - -
25 2.13 0.084 103 87 94 84 1.200 - - - -
35 2.52 0.099 125 105 119 103 0.868 - - - -
50 3.02 0.119 154 125 150 126 0.641 - - - -
70 2.16 0.085 182 154 180 156 0.443 - - - -
95 2.52 0.099 217 188 222 186 0.32 - - - -
TERMS AND CONDITIONS*
*The above rates are GST Paid Rate
*Freight Charges & any other statuory levies which shall be charged extra.
*Delivery : F.O.R. destination by road transport for order value above Rs. 5,00,000/-
*On To Pay basis for order values up to Rs. 5,00,000/-
PRODUCT DESCRIPTION
*Reference : IS 1554 PT-1.
*Conductor : EC Grade Aluminium Class 1 & 2 as per IS 8130.
*Insulation : PVC Type-A, as per IS 5831.
*Sheath : PVC Type ST-1, PVC Type-ST 2 as per IS 5831.
*Colours : Red & black for 2 core cable, red, yellow, blue for 3 core cable, red, yellow, blue & black for 4 core cable.
*Colour of sheath: Black and Other Colour as per requirement.
*oltage Rating: Up to and including 1100 Volt.
*Marking & : Standard packing of 500 mtr. in coil. & Other length available Packing on request, cables are printed with marking of 'ANOCAB'.
footer image form

*THE PRICES ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE*
