PRICE LIST (CO-AXIAL CABLE)ANODE ELECTRIC PVT. LTD.
Manufacture/Importer: Anocab |
|
|||||||
| GSTIN: 23AANCA7455R1ZX | Mail: mgmt@anode@gmail.com | Contact No: 18002700075 | ||||||

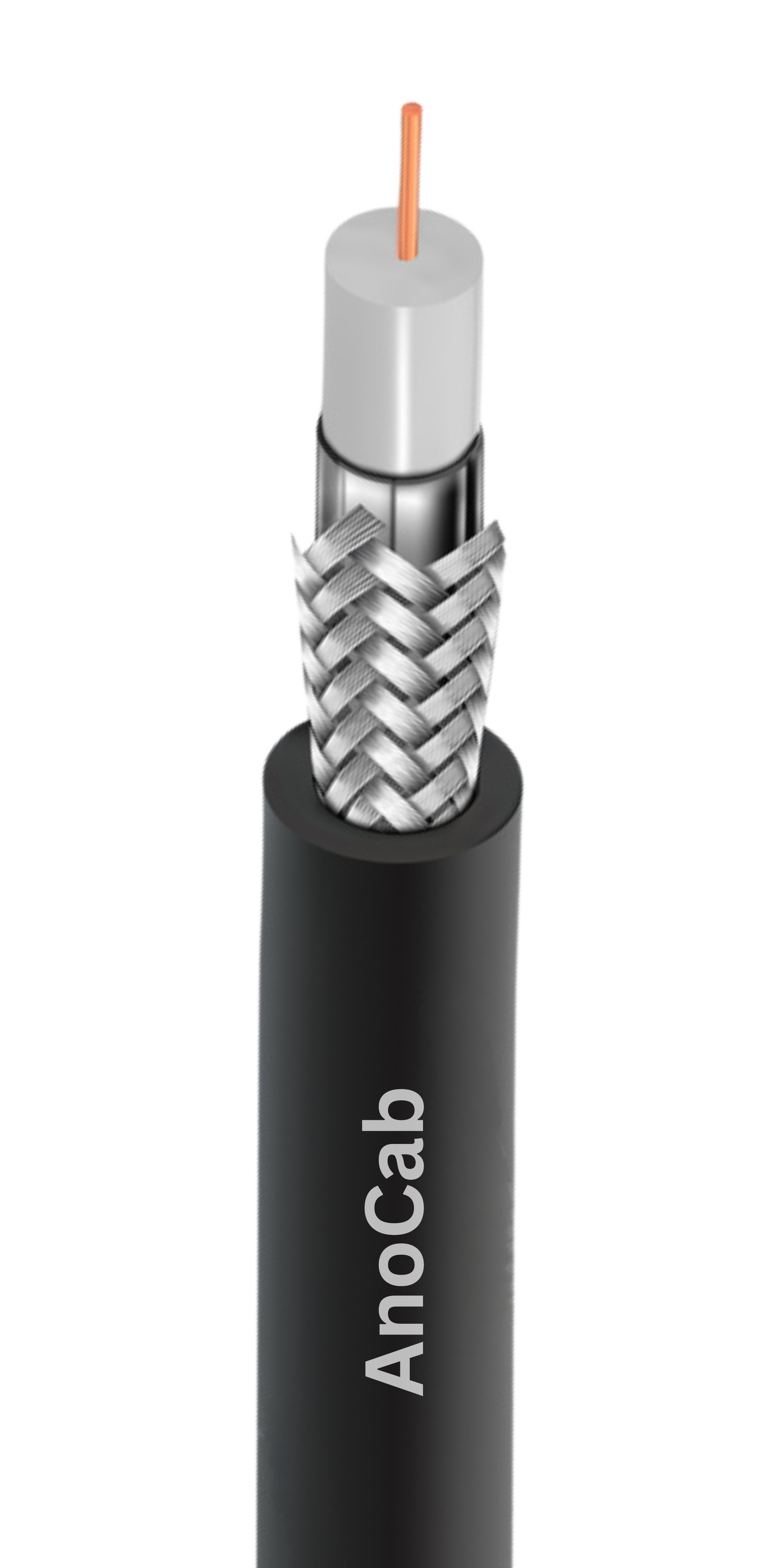

| CO-AXIAL CABLE | ||||||||
| Image | Size | No. Of Wires & Dia. Of Each Wire | NOM. ATTENUATION @ 25◦C (DB/100 M) | CR @ 20◦C | MRP | |||
|---|---|---|---|---|---|---|---|---|
| IN MM | .@ 55 MHZ | .@250 MHZ | .@500 MHZ | Ω/km | ||||
|
||||||||
| RG59 | 1/0.8 | 6.73 | 13.45 | 18.7 | 3.550 | - | ||
| RG6 | 1/1.02 | 4.95 | 10.5 | 14.95 | 2.130 | - | ||
| RG11 | 1/1.63 | 2.82 | 6.72 | 9.51 | 0.840 | - | ||
| TERMS AND CONDITIONS* | ||||||||
|
*The above rates are GST Paid Rate *Freight Charges & any other statuory levies which shall be charged extra. *Delivery : F.O.R. destination by road transport for order value above Rs. 2,00,000/- *On To Pay basis for order values up to Rs. 2,00,000/- |
||||||||
| PRODUCT DESCRIPTION | ||||||||
|
*Reference : IS 14459. *Voltage grade : Up to and including 600/1000V AC, 1800V DC. *Conductor : Electrolytic Grade Annealed Copper class-1. *Insulation : Gas injected Polyethelene foam/solid LDPE. *Sheath : PVC compound ST-1. *Colours : Black and other colour on customer demand. *Marking : The cables are printed with marking of 'ANOCAB'. *Packing : 100 mtr. coil is packed in protective Plastic bag & longer length on customer demand. |
||||||||
 |
||||||||
| *THE PRICES ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE* | ||||||||
