PRICE LIST (AERIAL BUNCHED CABLE)ANODE ELECTRIC PVT. LTD.
Manufacture/Importer: Anocab |
|
|||||||
| GSTIN: 23AANCA7455R1ZX | Mail: sales@anocab.com | Contact No: 18002700075 | ||||||

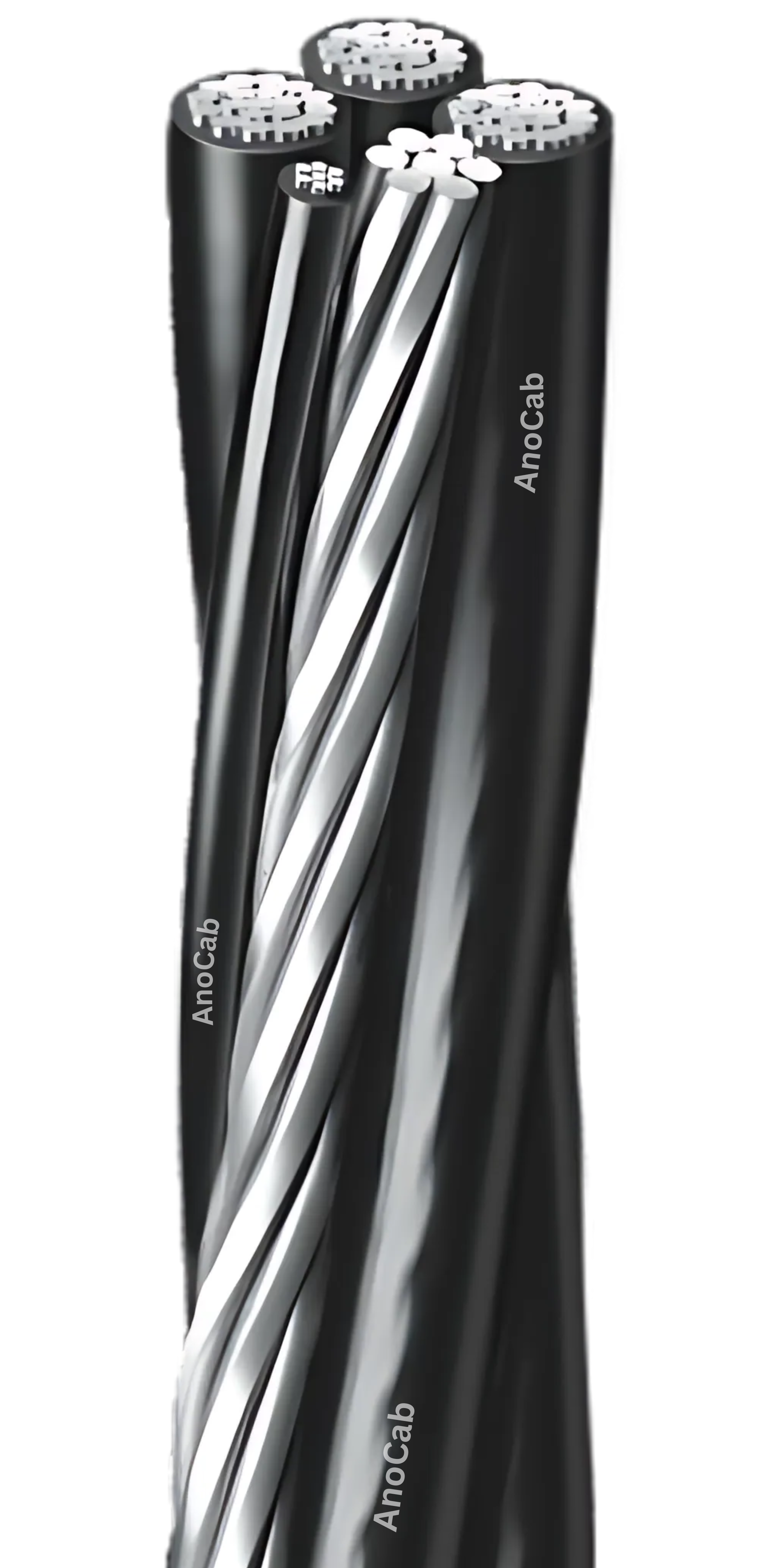

| AERIAL BUNCHED CABLE | ||||||||
|---|---|---|---|---|---|---|---|---|
| Image | Size (SQ MM) | No. Of Wire/Steel Wire Size | No. Of Wire/AL. Wire Size | Breaking Load (kN) | Resistance at 20°C (Ω/km) | MRP | ||
 |
||||||||
| 3*16+1*16+1*25 | 1.910 | 1.38 | 7.0 | 62 | - | |||
| 3*25+1*16+1*25 | 1.200 | 1.38 | 7.0 | 82 | - | |||
| 3*35+1*16+1*25 | 0.868 | 1.38 | 7.0 | 103 | - | |||
| 3*50+1*16+1*35 | 0.641 | 0.986 | 9.8 | 127 | - | |||
| 3*70+1*16+1*50 | 0.443 | 0.689 | 14.0 | 154 | - | |||
| 3*95+1*16+1*70 | 0.320 | 0.492 | 19.7 | 188 | - | |||
| TERMS AND CONDITIONS* | ||||||||
|
*The above rates are GST Paid Rate. *Freight Charges & any other statuory levies which shall be charged extra. *Delivery : F.O.R. destination by road transport for order value above Rs. 2,00,000/- *On To Pay basis for order values up to Rs. 2,00,000/- |
||||||||
| PRODUCT DESCRIPTION | ||||||||
|
*Reference : IS 14255:1995. *Rated Voltage : 110 Volts. *Conductor : Class-2 as per IS-8130. *Insulation : Cross link Polyethylene insulated. *Messenger: Aluminium Alloy Conductor as per IS-398 Pt-4. |
||||||||
 |
||||||||
| THE PRICES ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE | ||||||||
